8.4 Inch Industrial LCD Monitor with 800*600 Pixels Resolution and 450 cd/m² Brightness

Name: 8.4 Inch Industrial LCD Monitor with 800*600 Pixels Resolution and 450 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G084SN05 V9
Price: 43.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	G084SN05 V9
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

450ccd/m2

Resolution:

800*600pixels

Contrast Ratio:

600:1

Color:

262K

Working Life:

50k Hours

Connector:

20P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

industrial touch screen display

industrial panel pc touch screen

Product Description

8.4 Inch Industrial LCD Monitor - G084SN05 20 PIN

Product Overview

AUO industrial control LCD display monitor featuring 8.4-inch screen with 800*600 SVGA resolution, designed for demanding industrial applications.

Technical Specifications

Panel Brand: AUO

Panel Model: G084SN05 V9

Panel Size: 8.4 inch

Panel Type: a-Si TFT-LCD, LCM

Resolution: 800(RGB) * 600, SVGA

Pixel Format: RGB Vertical Stripe

Display Area: 170.4(W) * 127.8(H) mm

Bezel Opening: 174.15(W) * 131.2(H) mm

Outline Size: 203(W) * 142.5(H) * 8(D) mm

Surface: Antiglare, Hard coating (3H)

Brightness: 450 cd/m² (Typ.)

Contrast Ratio: 600:1 (Typ.) (TM)

Viewing Angle: 80/80/80/60 (Typ.)(CR ≥10)

Display Mode: TN, Normally White, Transmissive

Best View on: 6 o'clock

Response Time: 20/10 (Typ.)(Tr/Td)

Display Colors: 262K/16.2M 45% (CIE1931)

Lamp Type: 2 strings WLED, 50K hours, With LED Driver

Frequency: 60Hz

Touch Screen: Without

Panel Weight: 250g (Typ.)

Signal Interface: LVDS (1 ch, 6/8-bit), 20 pins, Connector

Input Voltage: 3.3V (Typ.)

Operating Temp.: -30 ~ 85 °C

Storage Temp.: -30 ~ 85 °C

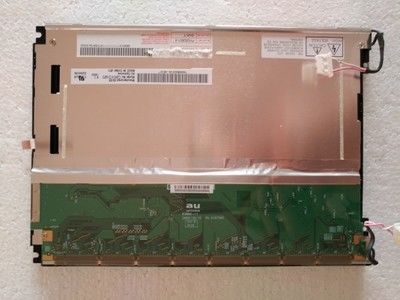

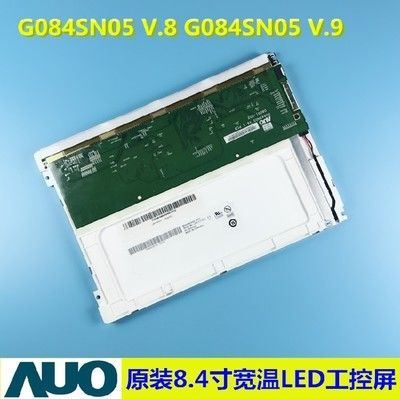

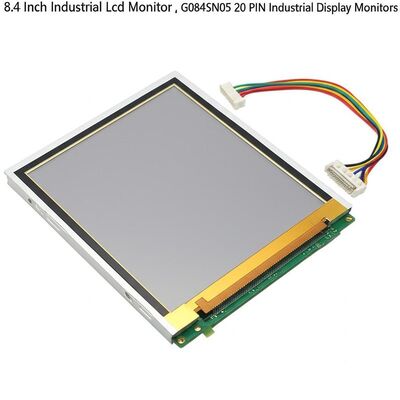

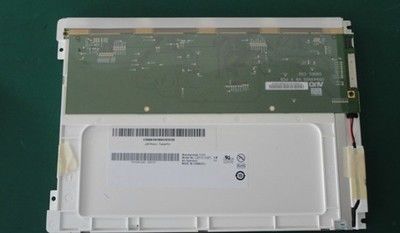

Product Images

Quality Assurance

All original products undergo comprehensive testing before shipment. Each unit is individually tested to ensure optimal performance and reliability.

Detailed specification documents available upon request. Please contact us for complete technical documentation via email.
