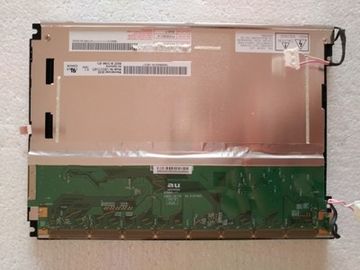

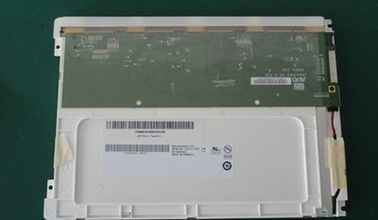

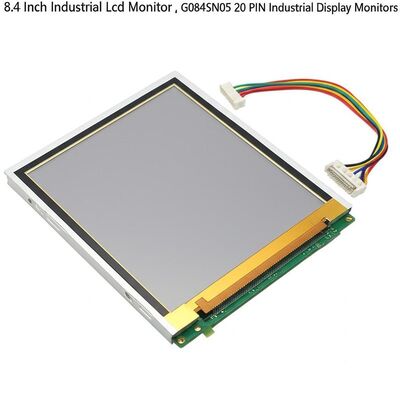

8.4 Inch Industrial Lcd Monitor , G084SN05 20 PIN Industrial Display Monitors

AUO industrial control lcd 8.4inch LCD display monitor G084SN05 V8 V9 20PIN 800*600pixels 450CCD/M2

• Panel Brand
  AUO
• Panel Model
  G084SN05 V9

• Panel Size
  8.4 inch
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  800(RGB)×600 , SVGA
• Pixel Format
  RGB Vertical Stripe

• Display Area
  170.4(W)×127.8(H) mm
• Bezel Opening
  174.15(W)×131.2(H) mm

• Outline Size
  203(W)×142.5(H) ×8(D) mm
• Surface
  Antiglare, Hard coating (3H)

• Brightness
  450 cd/m² (Typ.)
• Contrast Ratio
  600:1 (Typ.) (TM)

• Viewing Angle
  80/80/80/60 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  20/10 (Typ.)(Tr/Td)

• Display Colors
  262K/16.2M 45% (CIE1931)
• Lamp Type
  2 strings WLED , 50K hours , With LED Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Panel Weight
  250g (Typ.)
• Application


• Signal Interface
• LVDS (1 ch, 6/8-bit) , 20 pins , Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

• All Origianl product will be send to customer after full test one by one.
• Spec details can be send to you via email,please contact us.
