| Brand Name: | Hannstar |
| Model Number: | HSD103KPW2-A10 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

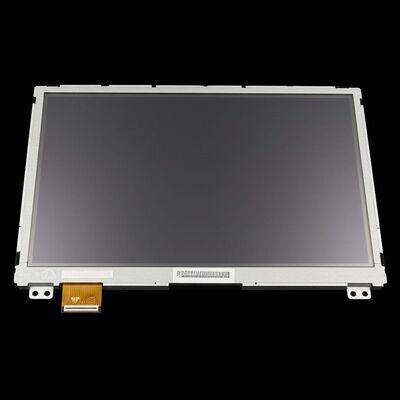

Hannstar 10.3" car lcd display HSD103KPW2-A10 10.3 inch LCD screen Panel 1920*720 Pixels for Car GPS display 50P WLED
| Brand | HannStar | Model | HSD103KPW2-A10 |
|---|---|---|---|
| Diagonal Size | 10.3 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×720 | Configuration | RGB Vertical Stripe |
| Active Area | 243.648(H)×91.368(V) mm | Outline Dim. | 259.8(H)×112(V) ×15.7(D) mm |
| Bezel Area | 246.05(H)×93.77(V) mm | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 850 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 35 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M | Light Source | WLED [9S4P] , 20K hours , W/O Driver |
| Weight | 360g (Typ.) | Designed For |
|
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | 50 pins LVDS (2 ch, 8-bit) , Connector | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) | ||
|
|
|||
HSD103KPW2-A10 is a 10.3" diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized by einklcd in the following: Wide Temperature, 3G Vibration, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Outdoor High Brightness, Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2017, Now this model is in production. We inputted this model's specification on Jul 19 2017 for the first time, and the latest update on Mar 12 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's agent to learn lateast production and specification detail of HSD103KPW2-A10. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All products will be send to customer after inspection one by one.
All products will be provided one year warranty service.
|
|
