Sharp 6.4 Inch Industrial LCD Display with 640×480 Resolution and 350 cd/m² Brightness Touch Screen Panel

Name: Sharp 6.4 Inch Industrial LCD Display with 640×480 Resolution and 350 cd/m² Brightness Touch Screen Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ064V3DG01
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ064V3DG01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

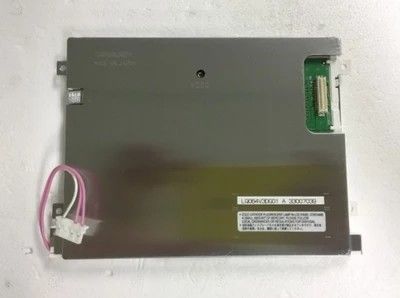

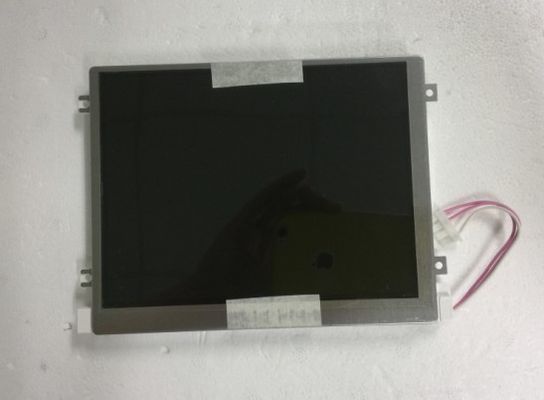

LQ064V3DG01 Industrial Panel PC Touch Screen

Sharp 6.4-inch Industrial LCD Display Module - Brand New Original

Display Specifications

Panel Brand	SHARP
Panel Model	LQ064V3DG01
Panel Size	6.4 inch
Resolution	640(RGB)*480 (VGA)
Display Area	130.56(W)*97.92(H) mm
Outline Size	161.3(W)*117(H) mm
Brightness	350 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.)
Viewing Angle	70/70/40/70 (Typ.)(CR≥5)
Best View	6 o'clock
Display Colors	262K
Frequency	60Hz
Weight	280g (Max.)

Technical Details

Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Surface	Antiglare
Display Mode	TN, Normally White, Transmissive
Response Time	8/21 (Typ.)(Tr/Td)

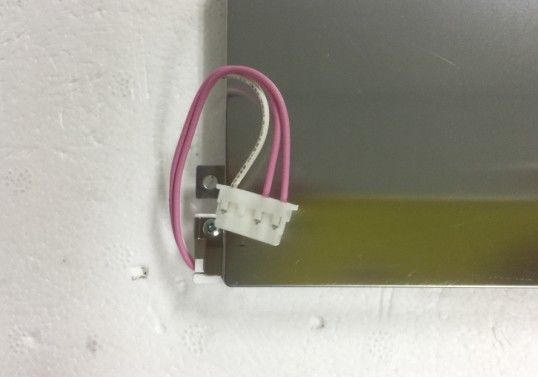

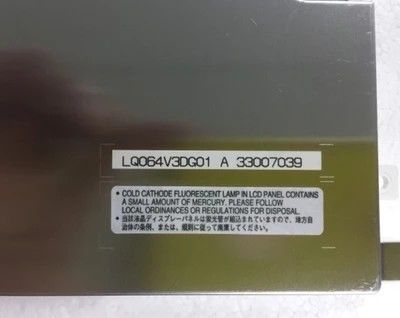

Backlight	2 pcs CCFL, 50K hours, Without Driver
Touch Screen	Without
Signal Interface	Parallel RGB (1 ch, 6-bit), 31 pins, Connector
Input Voltage	3.3/5.0V (Typ.)(VCC)

Environmental Specifications

Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Vibration Level	2.0G (19.6 m/s²)

All original products undergo comprehensive testing before shipment to ensure quality and reliability.

Detailed specifications available upon request. Please contact us for complete technical documentation via email.
