CSOT 55" LCD TV Panel TFT-LCD Display Panel with 500 CD/M2 Brightness 3840*2160 Resolution and 51pin Connector

Name: CSOT 55" LCD TV Panel TFT-LCD Display Panel with 500 CD/M2 Brightness 3840*2160 Resolution and 51pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD550EQE-FPA2
Price: 30.00 USD
Availability: InStock

Brand Name:	CSOT
Model Number:	LD550EQE-FPA2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

3840*2160

Style:

51PIN IPS

Brightness:

500 CD/M2

Color:

1.07B

Contrast Ratio:

1100 :1

Working Life:

50k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

500 CD/M2 Brightness LCD TV Panel

3840*2160 Resolution TFT-LCD Display Panel

51pin Connector Digital Signage LCD Panel

Product Description

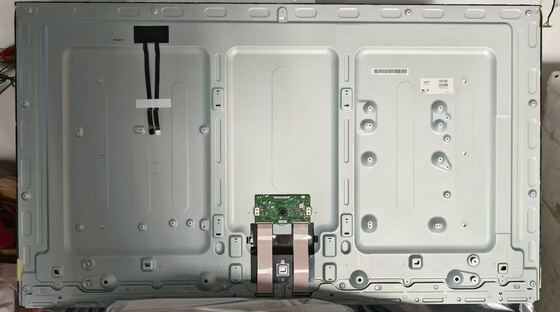

CSOT 55" LCD TV Panel LD550EQE-FPA2

High-performance 55-inch TFT-LCD display panel featuring 500 cd/m² brightness, 3840×2160 UHD resolution, and 51-pin connector. Ideal for digital signage applications with robust industrial specifications.

Product Overview

The CSOT LD550EQE-FPA2 is a 55-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. This industrial-grade panel operates within 0~50°C and features a 10-bit color depth with matte surface treatment. Recommended for digital signage applications with a backlight life expectancy of ≥50,000 hours.

Technical Specifications

Manufacturer	CSOT
Model Number	LD550EQE-FPA2
Screen Size	55 inch
Screen Type	a-Si TFT-LCD, LCM
Resolution	3840×2160 (UHD), 16:9 aspect ratio
Active Area	1209.6×680.4 mm (H×V)
Brightness	500 cd/m² (Typical)
Contrast Ratio	1100:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	8 ms (G to G, Typical)
Display Type	IPS, Normally Black, Transmissive
Color Support	1.07 billion colors, 68% NTSC
Power Consumption	91.36W (Typical)
Backlight	3 strings × 2CN WLED, 50K hours life
Signal Interface	V-by-One 8 lanes, 51-pin connector
Operating Voltage	12.0V (Typical)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C
Outline Dimensions	1233.4×706.8×30.1 mm (H×V×D)
Weight	13.9 kg (Typical) / 14.6 kg (Maximum)
Surface Treatment	Antiglare (Haze 28%), Hard coating (2H)

Note: Production status information is for reference only. For latest production and specification details, please contact CSOT or their authorized distributors before making integration decisions.
