Innolux 65 Inch LCD TV Panel with 3140*2160 Pixels and RGB Vertical Stripe LED TV Module

Brand Name:	CHIMEI innolux
Model Number:	S650DJ4-KS5
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

Black Or Silver

Model:

WLED

Style:

Wide Screen High Resolution 3140*2160

Packaging Details:

Industrial packing

Highlight:

flat screen tv panel

led tv display panel

Product Description

Innolux 65 Inch LED LCD TV Panel 3140 × 2160 Pixels 51P RGB Vertical Stripe

Product Overview

High-performance 65-inch Innolux LED TV module featuring Ultra HD resolution and advanced display technology for professional applications.

Model: S650DJ4-KS5 Rev.T4
65-inch display with 3840×2160 UHD resolution
Super MVA technology with normally black operation
V-by-One 8 lane signal interface with 51-pin connector

Technical Specifications

Manufacturer	Innolux
Model Name	S650DJ4-KS5 Rev.T4
Screen Size	65 inch
Screen Type	CELL, a-Si TFT-LCD
Pixel Number	3840(RGB)×2160 (UHD)
Pixel Arrangement	RGB Vertical Stripe
Active Area	1428.48 × 803.52 mm (H×V)
Outline Dimensions	1106.84 × 628.01 × 1.32 mm (H×V×D)
Surface Treatment	Antiglare (Haze 1%), Hard coating (3H)
Contrast Ratio	5000:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	9.5 ms (Typical, G to G)
Display Mode	Super MVA, Normally Black, Transmissive
Transmissivity	5.4% (Typical, with Polarizer)
Color Depth	1.07 Billion colors
Backlight	No Backlight, 30K hours rating
Weight	2.06 kg (Typical)
Refresh Rate	60Hz
Touchscreen	Without touch capability
Signal Type	V-by-One 8 lane, Connector, 51 pins
Operating Voltage	12.0V (Typical)
Temperature Range	Storage: -20°C to 60°C Operating: 0°C to 50°C

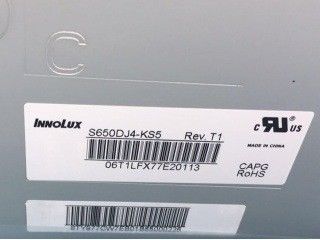

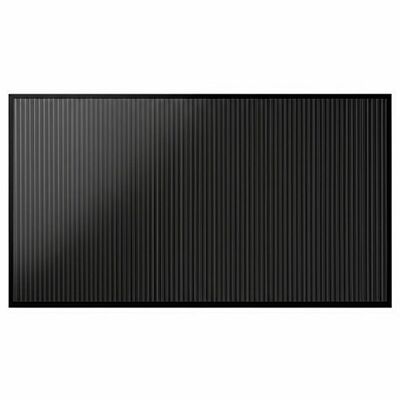

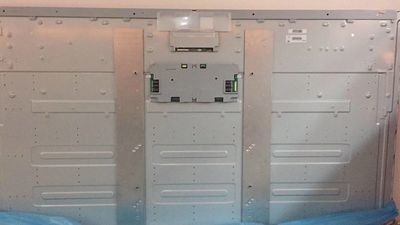

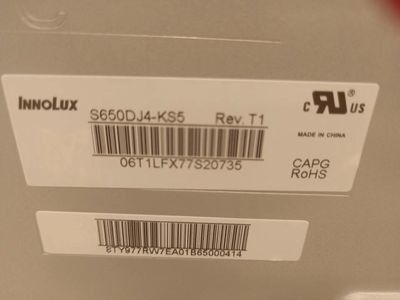

Product Visuals

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
