Innolux 75 Inch LCD Panel with 3840x2160 Pixels UHD Resolution and 380 cd/m² Brightness for Interactive Whiteboard and TV LCD Screen

Name: Innolux 75 Inch LCD Panel with 3840x2160 Pixels UHD Resolution and 380 cd/m² Brightness for Interactive Whiteboard and TV LCD Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: V750DK1-KS5
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	V750DK1-KS5
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

450CCD/M2

Connector:

97P

Color:

16.7M/1.07B

Contrast Ratio:

1400:1

Working Life:

30K Hours

Touch Panel:

Without

Resolution:

3840*2160pixels UHD

Packaging Details:

Industrial packing

Product Description

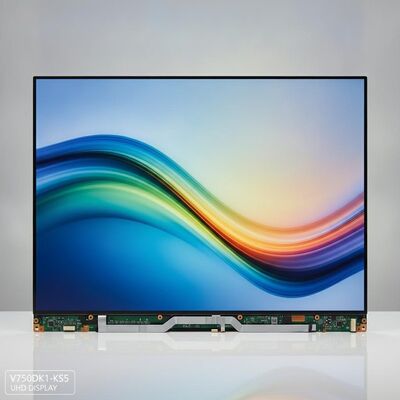

Innolux 75-Inch TV LCD Panel Model V750DK1-KS5

Note: This model has been discontinued

UHD 3840×2160 Pixels LCD Display with 380 cd/m² brightness, designed for interactive whiteboards and TV applications.

Product Overview

The Innolux V750DK1-KS5 Rev.C1 is a 75-inch diagonal a-Si TFT-LCD display panel featuring an integral WLED backlight system with LED driver. This panel operates within a temperature range of 0~50°C and stores safely at -20~60°C. Originally mass produced in Q4 2014, this model is now discontinued.

Key Features

120Hz refresh rate with 3D display capability
10-bit color depth displaying 1.07 billion colors
Super MVA technology with normally black, transmissive display
WLED backlight with 30,000-hour lifespan
Matte surface with anti-glare and hard coating (3H)
V-by-One 8-lane interface with 56-pin connector

Technical Specifications

Manufacturer	Innolux
Model Name	V750DK1-KS5 Rev.C1
Display Size	75 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160 (UHD), 16:9 aspect ratio
Brightness	380 cd/m² (Typical)
Contrast Ratio	4000:1 (Typical)
Viewing Angle	88/88/88/88 (CR≥20)
Response Time	6.5 ms (G to G, Typical)
Display Colors	1.07 billion, 88% NTSC
Display Area	1650.24(W) × 928.26(H) mm
Outline Size	1670.64(W) × 951.66(H) mm
Panel Weight	35.0 kg (Typical)
Interface	V-by-One 8 lanes, 56 pins Connector
Input Voltage	12.0V (Typical)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Applications

TV Sets
Interactive Whiteboards

Important Notice: This model's production status is provided for reference only and should not be used as the basis for decision-making. For current production and specification details, please contact Innolux or their authorized distributors.
