15.4inch Industrial LCD Display Panel with 1280x800pixels XGA Resolution 450cd/m2 Brightness and 30PIN IPS Interface

Name: 15.4inch Industrial LCD Display Panel with 1280x800pixels XGA Resolution 450cd/m2 Brightness and 30PIN IPS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G154I1-LE1
Price: 43.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	G154I1-LE1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1280*800pixels

Style:

30PIN IPS

Brightness:

450CD/M2

Color:

262k

Contrast Ratio:

700 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Product Description

15.4inch Industrial LCD Display Panel G154i1-LE1

Product Overview

15.4-inch diagonal industrial LCD display panel with 1280×800 XGA resolution, 450 cd/m² brightness, and 30-pin IPS interface. Features wide temperature operation and WLED backlight system.

Technical Specifications

Manufacturer	Chimei Innolux
Model No.	G154I1-LE1
Screen Size	15.4 inch
Screen Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA, 16:10
Active Area	331.2×207 mm (H×V)
Outline Dimensions	352×230×9.5 mm (H×V×D)
Weight	880g (Typical)
Brightness	450 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle	80/80/70/70 (Typical, CR≥10)
Response Time	5/11 ms (Typical, Tr/Td)
Display Colors	262K/16.2M, 56% NTSC
Backlight	6 strings WLED, 50K hours lifespan, With LED Driver
Signal Interface	LVDS (1 ch, 6/8-bit), 30-pin Connector
Operating Voltage	3.3V (Typical)
Power Consumption	10.1W (Maximum)
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C

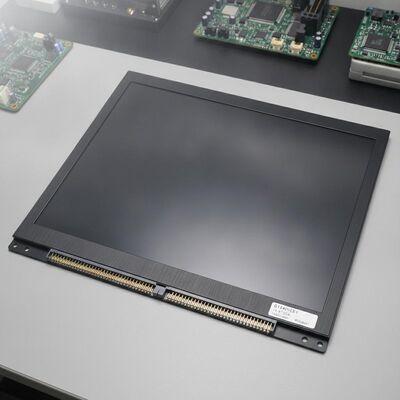

Product Image

Additional Information

This industrial-grade display features antiglare surface with hard coating (3H), matte finish, and supports 180° reverse orientation. Designed for industrial and gaming applications with maximal vibration level of 1.5G (14.7 m/s²).

Important Note: This model began mass production in Q1 2011 with last shipment in Q4 2023 and is now discontinued. For integration into future products, contact Chimei Innolux or their agent for latest production and specification details. Information provided is for reference only and should not be used as the sole basis for decision making.
