BOE 32Inch TV LCD Display Screen HV320FHB-N02 with 1920*1080pixels Resolution 16.7M Colors and 51PIN Connector

BOE 32Inch TV LCD Display Screen HV320FHB-N02 with 1920*1080pixels Resolution 16.7M Colors and 51PIN Connector

Brand Name:	BOE
Model Number:	HV320FHB-N2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

500CCD/M2

Connector:

51P

Color:

16.7m

Contrast Ratio:

1200:1

Working Life:

30K Hours

Touch Panel:

Without

Resolution:

1920*1080pixels

Packaging Details:

Industrial packing

Product Description

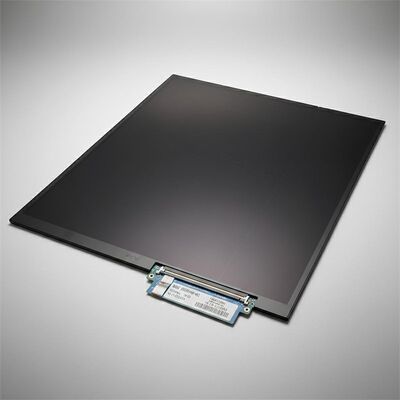

BOE 32-Inch TV LCD Display Screen HV320FHB-N02

HV320FHB-N02 is a 32.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd., supplied as a CELL without backlight or touch screen. This model features 1920*1080 FHD resolution, 16.7 million colors, and a 51-pin LVDS connector interface.

Product Specifications

Brand	BOE
Model P/N	HV320FHB-N02
Diagonal Size	32.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)*1080 (FHD), 69 PPI
Active Area	698.4(W)*392.85(H) mm
Outline Size	708.4(W)405.4(H)1.36(D) mm
Surface Treatment	Antiglare (Haze 1%), Hard coating (3H)
Contrast Ratio	1200:1 (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	ADSDS, Normally Black, Transmissive
Response Time	8ms (Typ.)(G to G)
Display Colors	16.7M (72% NTSC)
Frequency	75Hz
Driver IC	COF Built-in 6 source chips
Signal Interface	LVDS (2 ch, 8-bit), 51 pins Connector
Input Voltage	12.0V (Typ.)
Panel Weight	850g (Typ.)
Operating Temperature	0 ~ 60°C
Storage Temperature	-20 ~ 60°C

Important Note: This model entered mass production in Q1 2017 and is now discontinued. Einklcd strongly recommends contacting BOE or their authorized agents for the latest production status and specification details before integrating this display CELL into your product. The information provided is for reference only and should not be used as the sole basis for decision-making.
