LG 55" LCD TV Panel TFT-LCD Display Panel with 450 CD/M2 Brightness 1920*1080 Resolution and 51pin Connector

Name: LG 55" LCD TV Panel TFT-LCD Display Panel with 450 CD/M2 Brightness 1920*1080 Resolution and 51pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LD550EUE-FHB1
Price: 30.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LD550EUE-FHB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080

Style:

51PIN IPS

Brightness:

450 CD/M2

Color:

16.7m

Contrast Ratio:

1100 :1

Working Life:

50k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

450 CD/M2 Brightness LCD TV Panel

1920*1080 Resolution TFT-LCD Display Panel

51pin Connector LCM

Product Description

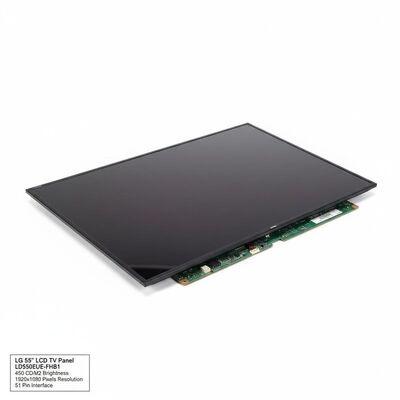

LG 55" LCD TV Panel LD550EUE-FHB1

High-performance 55-inch LCD display panel featuring 450 cd/m² brightness, 1920*1080 Full HD resolution, and 51-pin LVDS interface. Ideal for digital signage applications with reliable performance and extended lifespan.

Product Specifications

Brand	LG Display
Model P/N	LD550EUE-FHB1
Diagonal Size	55"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080, FHD (40PPI)
Pixel Format	RGB Vertical Stripe
Active Area	1209.6(W)*680.4(H) mm
Bezel Opening	1214.2(W)*685.0(H) mm
Outline Dimensions	1232(W)708.9(H)28.6(D) mm
Surface Treatment	Antiglare (Haze 1%), Hard coating (3H)
Luminance	450 cd/m² (Typical)
Contrast Ratio	1100:1 (Typical)
View Direction	Symmetry
Response Time	12ms (Typical, G to G)
Viewing Angle	89/89/89/89 (Minimum, CR≥10)
Operating Mode	S-IPS, Normally Black, Transmissive
Color Support	16.7M colors, 68% NTSC
Light Source	WLED (2 strings), 50K hours lifespan, Without Driver
Weight	13.0/13.7 kg (Typical/Maximum)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 channel, 8-bit), 51-pin Connector
Power Supply	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Application Information

This 55-inch LCD panel is specifically designed for digital signage applications. The panel features landscape/portrait orientation capability, WLED backlight technology with 50,000+ hours lifespan, matte surface treatment, and integrated black bezel design.

Important Note: This model (LD550EUE-FHB1) began mass production in Q1 2015 and was discontinued in Q4 2020. For integration into future products, we strongly recommend contacting LG Display or their authorized distributors for the latest production status and specification details. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
