AUO 21.5inch Digital Signage LCD Panel P215HVN02.0 with 1920x1080 Resolution 300 cd/m² Brightness and 50K Hours Lifespan

Name: AUO 21.5inch Digital Signage LCD Panel P215HVN02.0 with 1920x1080 Resolution 300 cd/m² Brightness and 50K Hours Lifespan
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: P215HVN02.0
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	P215HVN02.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Brightnerss:

300CCD/M2

Connector:

30P

Color:

16.7M

Contrast Ratio:

3000:1

Working Life:

50K Hours

Touch Panel:

Without

Resolution:

1920*1080pixels

Packaging Details:

Industrial packing

Highlight:

1920x1080 Resolution LCD Panel

300 cd/m² Brightness TFT-LCD Display

50K Hours Lifespan Digital Signage Display

Product Description

AUO 21.5-inch Digital Signage LCD Panel P215HVN02.0

P215HVN02.0 is a 21.5-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system. This panel is designed for digital signage applications with landscape/portrait orientation capability and offers excellent performance characteristics including matte surface treatment and extended backlight life.

Technical Specifications

Brand AUO

Model P/N P215HVN02.0

Diagonal Size 21.5"

Panel Type a-Si TFT-LCD, LCM

Resolution 1920(RGB)×1080, FHD 102PPI

Pixel Format RGB Vertical Stripe

Active Area 478.656(W)×260.28(H) mm

Bezel Opening 481.9(W)×263.5(H) mm

Outline Dimensions 501.88(H)×284.78(V)×12(D) mm

Surface Treatment Antiglare (Haze 25%), Hard coating (3H)

Luminance 300 cd/m² (Typ.)

Contrast Ratio 3000:1 (Typ.) (TM)

Response Time 20ms (Typ.)(G to G)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10)

Operating Mode VA, Normally Black, Transmissive

Color Support 16.7M 72% NTSC

Light Source WLED [15S4P], 50K hours, W/O Driver

Weight 1.65Kgs (Typ.)

Frame Rate 60Hz

Interface Type LVDS (2 ch, 8-bit), 30 pins Connector

Power Supply 5.0V (Typ.)

Operating Temperature 0 ~ 50 °C

Storage Temperature -20 ~ 60 °C

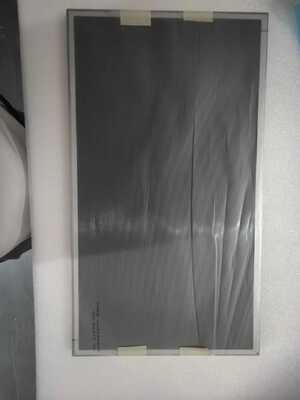

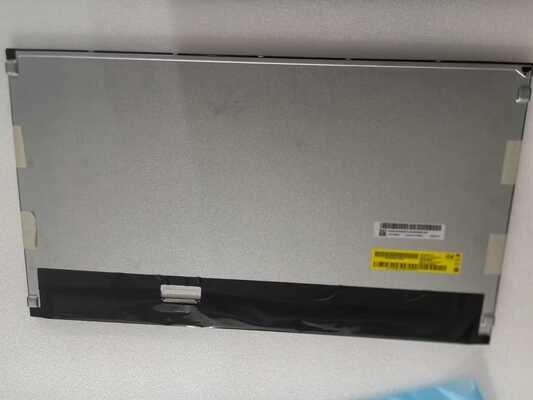

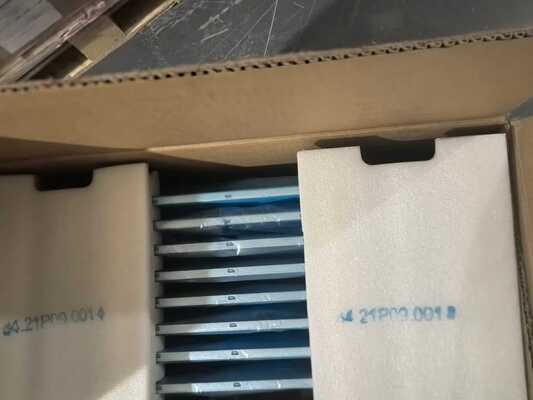

Product Images

Important Note: This model entered mass production in Q4 2021 and is currently in production. For integration into your products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specification details. Information on einklcd.com is for reference only and should not be used as the sole basis for decision-making.
