12.3Inch BOE Automotive LCD Display with 1920*720Pixels Resolution and 850 cd/m² Brightness for Car Applications

Name: 12.3Inch BOE Automotive LCD Display with 1920*720Pixels Resolution and 850 cd/m² Brightness for Car Applications
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV123Z7M-N18
Price: 56 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV123Z7M-N18
MOQ:	10pcs
Price:	$56
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	2000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*720pixels

Style:

LCD 65PIN

Brightness:

850CCD M2

Color:

16.7M

Contrast Ratio:

1100 :1

Working Life:

30K Hours

Touch Panel:

No Touch Panel

Packaging Details:

Industrial packing

Highlight:

12.3Inch Automotive LCD Display

1920*720Pixels Car LCD Display

850 cd/m² TFT-LCD Display

Product Description

BOE 12.3-Inch Automotive LCD Display - Model AV123Z7M-N18

The AV123Z7M-N18 (also known as COG-VLSZT051-01) is a 12.3-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This automotive-grade display features an integrated WLED backlight system and operates within a wide temperature range, making it ideal for demanding automotive applications.

Key Features

12.3-inch diagonal display with 1920*720 pixel resolution
High brightness: 850 cd/m² (typical)
Wide operating temperature: -30°C to 85°C
1100:1 contrast ratio with 167 PPI pixel density
16.7 million colors with 75% NTSC color gamut
LVDS interface with 45-pin connector
ADS technology with normally black, transmissive work mode
Hard coating treatment for durability

Technical Specifications

Brand	BOE
Model Number	AV123Z7M-N18
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*720 pixels
Active Area	292.032mm * 109.512mm
Outline Dimensions	307mm * 126mm * 10.52mm (HVD)
Viewing Angle	88/88/88/88 (Left/Right/Up/Down)
Response Time	25ms (typical, Tr+Td)
Refresh Rate	60Hz
Backlight	9S4P WLED, No Driver
Signal Interface	LVDS (2 ch, 8-bit), 45-pin connector
Touch Screen	Without touch screen

Environmental Specifications

Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 90°C

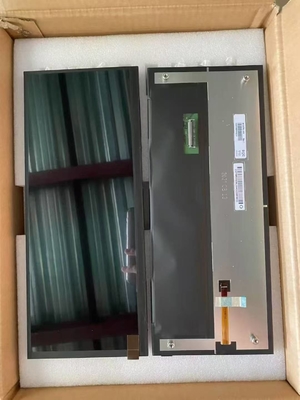

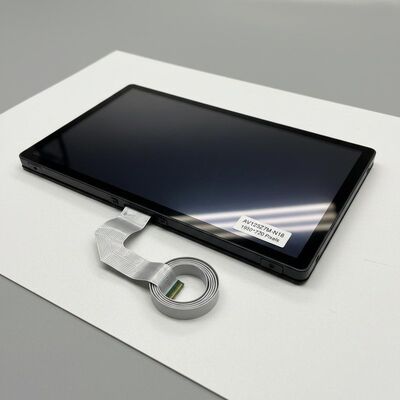

Product Image

Note: This model entered mass production in Q4 2019 and is currently in production. For the latest production status and detailed specifications, we recommend contacting BOE or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
