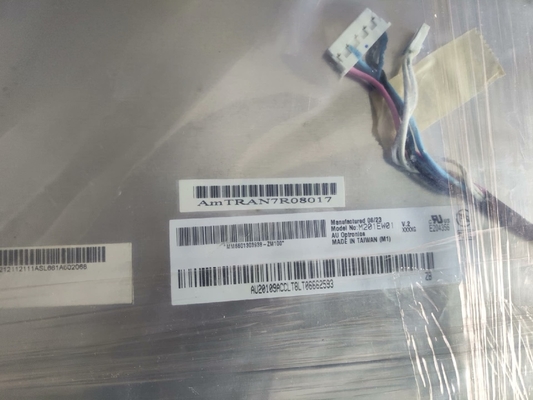

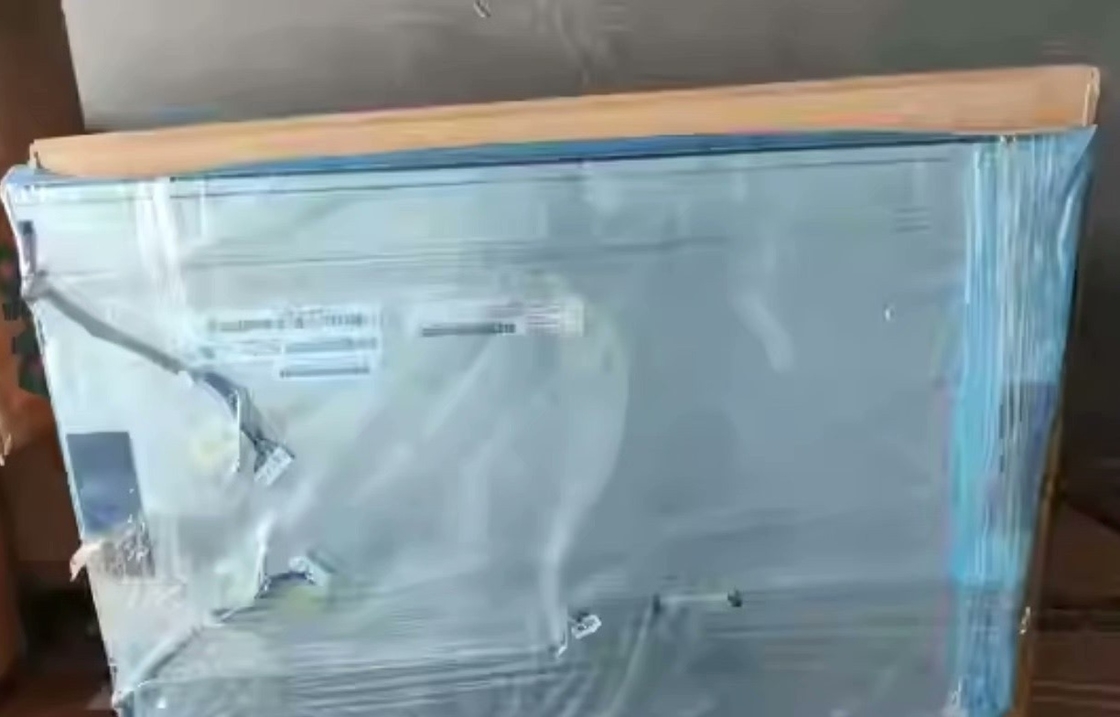

AUO 20.1inch lcd model M201EW01 V2 1680* 1050Pixels PC LCD Module 30PIN 98PPI Desktop monitor

The M201EW01 V2 (Alias: M201EW01 V.2) is a 20.1 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Life ≥ 50K hours, Glossy . Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q2, 2004, Now this model is discontinued.  We inputted this model's specification on Feb 21 2013 for the first time, and the latest update on Oct 29 2024. If you want to embed M201EW01 V2 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The M201EW01 V2 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:AUO

Model P/N: M201EW01 V2
Diagonal Size: 20.1"

Panel Type: a-Si TFT-LCD, LCM
Resolution 1680(RGB)×1050, WSXGA+ 98PPI Pixel

Format RGB Vertical Stripe
Active Area 433.44(W)×270.9(H) mm

Bezel Opening 437.8(W)×275.3(H) mm
Outline Dim.459.4(H)×296.4(V) ×23.3(D) mm

Treatment Glare (Haze 0%), Hard coating (3H)
Luminance: 300 cd/m² (Typ.)

Contrast Ratio: 1000:1 (Typ.) (TM)
View Direction Symmetry

Response Time:11/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down

Operating Mode: AMVA, Normally Black, Transmissive
Support Color16.7M 72% NTSC

Light Source: CCFL [6 pcs] , 60K hours , W/O Driver
Weight: 2.95Kgs (Typ.)

Designed For: Desktop Monitor
Frame Rate 75Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Panel: Without
Interface Type: LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply: 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ;

Storage Temperature: -20 ~ 60 °C
