Hannstar 12.3 Inch Industrial LCD Monitor with 1920*720 Pixels and 16.7M Color PC LCD Display

Name: Hannstar 12.3 Inch Industrial LCD Monitor with 1920*720 Pixels and 16.7M Color PC LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HSD123IPW1-A00
Price: 30.00 USD
Availability: InStock

Brand Name:	Hannstar
Model Number:	HSD123IPW1-A00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*720pixels

Style:

WLED 40P

Brightness:

850 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

lcd display panel

lcd digital display

Product Description

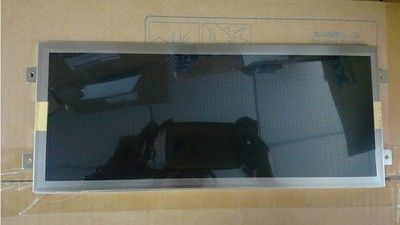

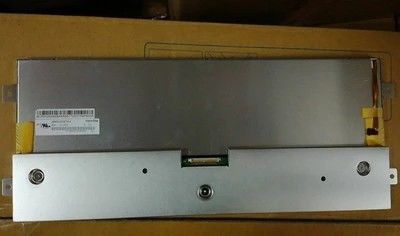

Hannstar LCD HSD E Ink PC Display

12.3-inch industrial LCD touch screen monitor with 16.7M color support and 1920*720 pixel resolution.

Product Overview

Hannstar 12.3" LCD HSD123IPW1-A00 industrial PC monitor featuring 16.7 million colors, 1920*720 pixel resolution, and robust industrial-grade construction.

Key Specifications

Specification	Details
Brand	HannStar

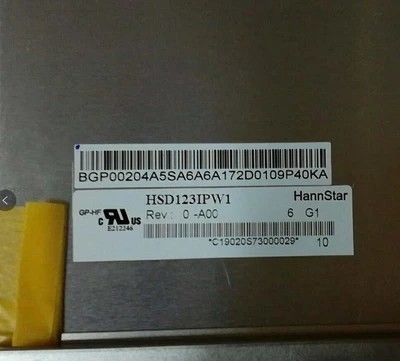

Model	HSD123IPW1-A00
Diagonal Size	12.3 inch
Pixel Format	1920(RGB)*720
Active Area	292.032(H)*109.512(V) mm
Bezel Area	294.8(H)*112.4(V) mm
Luminance	850 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response Time	18/17 (Typ.)(Tr/Td)
Support Color	16.7M 70% (CIE1931)
Frame Rate	60Hz
Weight	516g (Typ.)

Technical Details

Display Type: a-Si TFT-LCD, LCM
Configuration: RGB Vertical Stripe
Outline Dimensions: 335.8(H)*132.2(V)*13.3(D) mm
Surface Treatment: Antiglare
Operating Mode: IPS Pro, Normally Black, Transmissive
Light Source: WLED [10S5P], 30K hours, W/O Driver
Touch Panel: Without

Interface & Power

Interface Type: 40 pins LVDS (2 ch, 8-bit), Connector
Power Supply: 3.3V (Typ.)

Environmental Specifications

Operating Temperature: -30 ~ 85 °C
Storage Temperature: -40 ~ 95 °C
Vibration Level: 2.9G (28.4 m/s²)

Quality Assurance: All products undergo individual inspection before shipment to ensure optimal performance and reliability.
