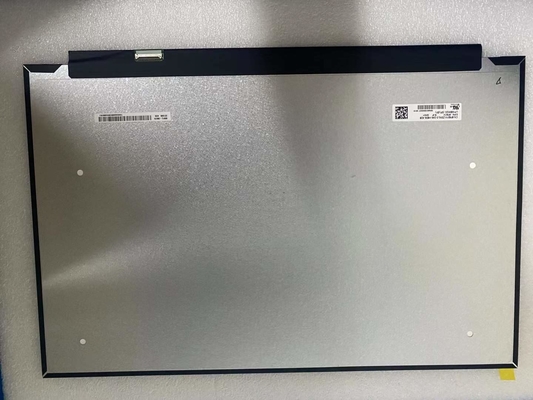

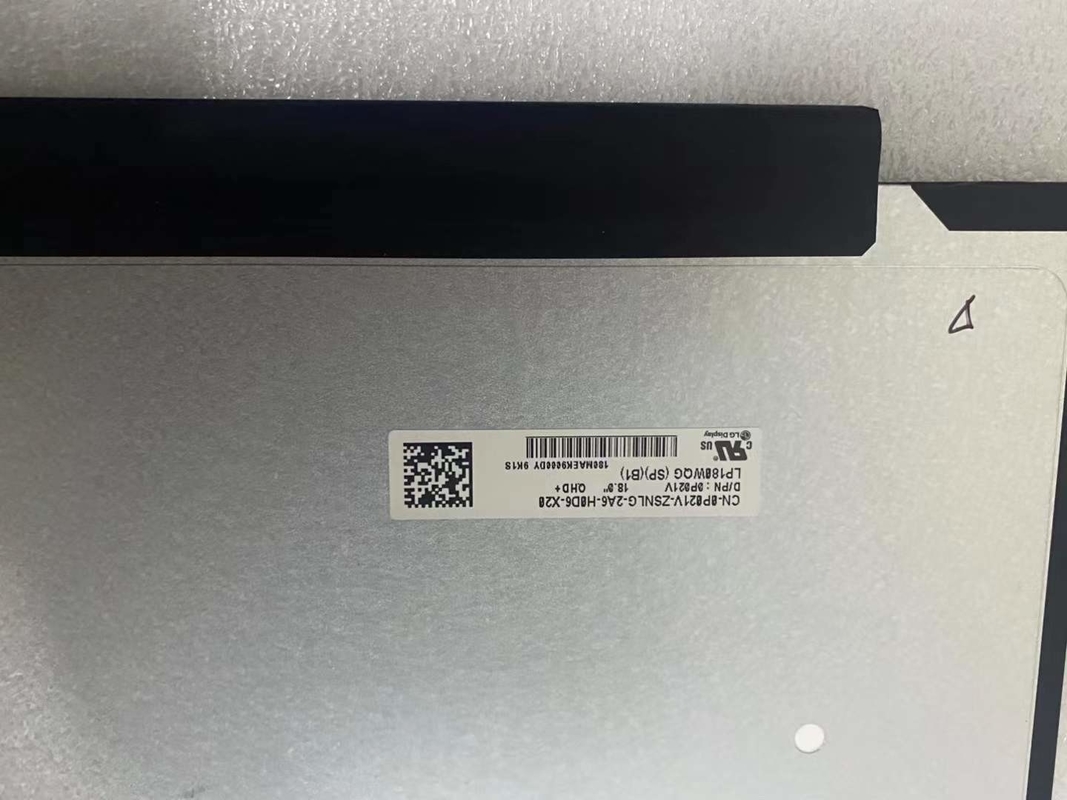

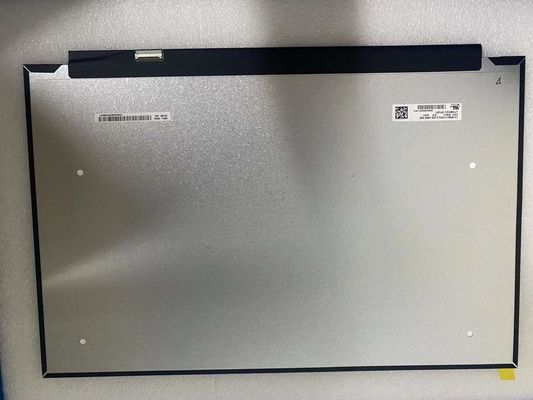

LG 18nch Industrial Lcd Model LP180WQG-SPB1 2560*1600Pixels 167PPI 300cd/M2 40PIN

Name: LG 18nch Industrial Lcd Model LP180WQG-SPB1 2560*1600Pixels 167PPI 300cd/M2 40PIN
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LP180WQG-SPB1
Price: 43.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LP180WQG-SPB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2560*1600pixels

Style:

40PIN IPS

Brightness:

300CD/M2

Color:

16.7m

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Type:

Lcm

Size:

18inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

LP180WQG-SPB1 Industrial Lcd

18nch Industrial Lcd

40PIN Industrial Lcd

Product Description

LG 18nch Industrial Lcd Model LP180WQG-SPB1 2560*1600Pixels 167PPI 300cd/M2 40PIN

LP180WQG-SPB1 (Alias: LP180WQG (SP)(B1)) (Product Code: LGD074A) is a 18.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: DCI-P3, sRGB, 165Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte, NVIDIA G-Sync , eDP1.4b, LBL, LED Dimming Mode DC, G-sync, PSR1, SSC, DDS, OD. Based on its features, einklcd recommend that this model be applied to Laptop, Gaming etc. According to the information stored in Panelook this model mass production on Q1, 2023, Now this model is in production. We inputted this model's specification on Jan 18 2024 for the first time, and the latest update on Aug 21 2024. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LP180WQG-SPB1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand LG

Display Model P/N: LP180WQG-SPB1

Diagonal Size: 18.0"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 2560(RGB)×1600, WQXGA 167PPI Pixel

Forma RGB Vertical Stripe

Active Area 387.763(W)×242.352(H) mm

Bezel Opening-

Outline Size: 394.26(W)×264.3(H) ×3(D) mm

Surface Antiglare, Hard coating (3H)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Min.)(CR≥10) Left / Right / Up / Down

Display Mode IPS, Normally Black, Transmissive

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Best View on Symmetry Response Time 9 (Typ.)(Tr+Td), 7 (Typ.)(G to G), 3 (Typ.)(G to G)(OD)

Display Colors 16.7M 100% DCI-P3 Lamp Type WLED , 15K hours , With LED Driver

Frequency 165Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Touch Screen :Without

Shape Style Slim (PCBA Flat, T≤3.2mm)

Application : Laptop Gaming

Signal Interface: eDP (4 Lanes) , eDP1.4b , HBR3 (8.1G/lane) , 40 pins Connector

Input Voltage 3.3V (Typ.)

Environment Operating Temp.: 0 ~ 50 °C ;

Storage Temp.: -20 ~ 60 °C
