Innolux 18inch Industrial LCD Display TFT-LCD Display Panel with 2560*1600pixels Resolution and 300cd/M2 Brightness

Name: Innolux 18inch Industrial LCD Display TFT-LCD Display Panel with 2560*1600pixels Resolution and 300cd/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: N180GME-GAA
Price: 43.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	N180GME-GAA
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

2560*1600pixels

Style:

40PIN IPS

Brightness:

300CD/M2

Color:

16.7m

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Type:

Lcm

Size:

18inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

N180GME-GAA Industrial Lcd

300cd/M2 Industrial Lcd

167PPI Industrial Lcd

Product Description

Innolux 18-Inch Industrial LCD Display - Model N180GME-GAA

The N180GME-GAA is a high-performance 18.0-inch Oxide TFT-LCD display panel from Innolux Corporation, featuring WQXGA resolution (2560*1600 pixels) and a pixel density of 167 PPI. This industrial-grade display offers exceptional color accuracy with 100% DCI-P3 coverage and is engineered for demanding applications including gaming laptops and professional workstations.

Key Features

High refresh rate: 165Hz native, with 240Hz MEMC capability
Advanced gaming technologies: G-Sync, FreeSync, and nVSR support
Wide color gamut: 100% DCI-P3 and sRGB color spaces
High brightness: 300 cd/m² typical luminance
Fast response time: 5ms typical (Tr/Td)
Anti-glare, hard coating (3H) surface treatment
eDP 1.4 interface with 40-pin connector
Integrated WLED backlight with driver

Technical Specifications

Model Number	N180GME-GAA (Product Code: CMN1809)
Display Type	Oxide TFT-LCD, LCM
Diagonal Size	18.0 inches
Resolution	2560(RGB)*1600 (WQXGA)
Pixel Density	167 PPI
Active Area	387.763mm * 242.352mm
Outline Dimensions	394.26mm * 264.3mm * 3mm
Brightness	300 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (Left/Right/Up/Down, CR≥10)
Response Time	5ms/5ms (Typical, Tr/Td)
Color Support	16.7 million colors
Interface	eDP (4 Lanes), eDP1.4, 40-pin connector
Power Supply	3.3V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Maximal 1.5G (14.7 m/s²)

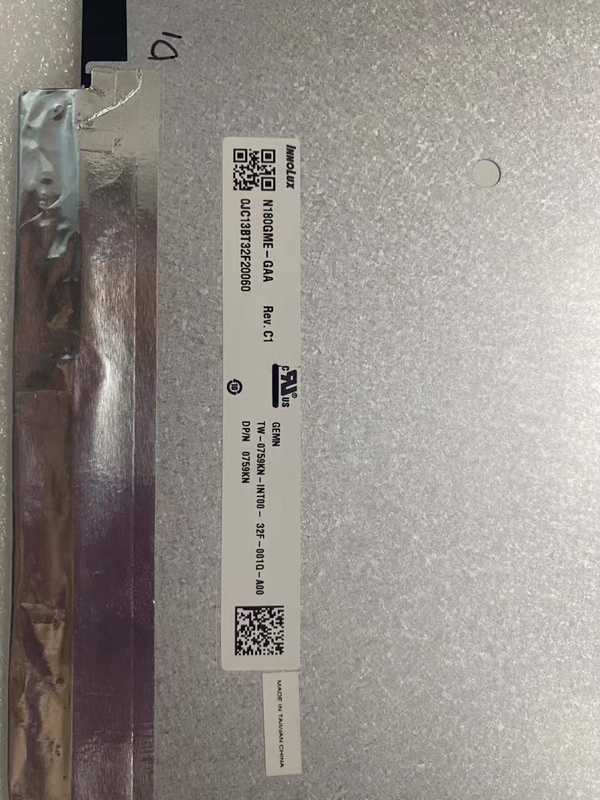

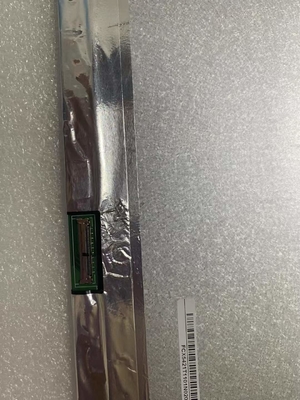

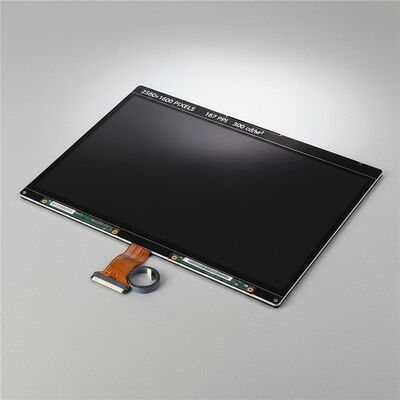

Product Image

Note: This model entered mass production in Q4 2022 and is currently in production. For the latest production status and detailed specifications for integration into your products, we recommend contacting Innolux or their authorized agents directly.
