Hannstar 12.3inch Car LCD Display with 1920*720 Pixels 850 cd/m² Brightness and 50Pin IPS for Automotive Applications

Hannstar 12.3inch Car LCD Display with 1920*720 Pixels 850 cd/m² Brightness and 50Pin IPS for Automotive Applications

Hannstar 12.3inch Car LCD Display with 1920*720 Pixels 850 cd/m² Brightness and 50Pin IPS for Automotive Applications

Brand Name: Hannstar
Model Number: HSD123KPW1-A30
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*720Pixels
Style:
50PIN IPS
Brightness:
850 CD/M2
Color:
16.7M
Contrast Ratio:
1000 :1
Working Life:
30k Hours Without Driver
Packaging Details:
Industrial packing
Highlight:

12.3inch car lcd panel

,

850cd/m2 Automotive lcd

,

HSD123KPW1-A30 car lcd panel

Product Description
Hannstar 12.3-inch Automotive LCD Panel HSD123KPW1-A30
The HSD123KPW1-A30 is a 12.3-inch diagonal a-Si TFT-LCD display panel from HannStar Display Corporation, designed specifically for automotive applications. This high-brightness display features an integrated WLED backlight system and operates reliably in extreme temperature conditions with robust vibration resistance.
Key Features
  • 12.3-inch diagonal automotive-grade display
  • High brightness: 850 cd/m² (typical)
  • Wide operating temperature: -30°C to 85°C
  • Vibration resistant: up to 2.9G (28.4 m/s²)
  • 1920*720 resolution with 167 PPI
  • IPS Pro technology with normally black display
  • LVDS interface with 50-pin connector
  • WLED backlight with 30,000-hour lifespan
Technical Specifications
Brand HannStar
Model Number HSD123KPW1-A30
Display Size 12.3-inch diagonal
Resolution 1920(RGB)*720 pixels, 167 PPI
Active Area 292.032mm * 109.512mm
Brightness 850 cd/m² (typical)
Contrast Ratio 1000:1 (typical)
Viewing Angle 85/85/85/85 (CR≥10) Left/Right/Up/Down
Response Time 17/18ms (typical, Tr/Td)
Display Colors 16.7 million, 71% NTSC
Refresh Rates 60Hz, 120Hz (with embedded MEMC), 240Hz (with embedded MEMC)
Interface LVDS (2 channel, 8-bit), 50-pin connector
Input Voltage 3.3V (typical)
Outline Dimensions 308.1mm * 130mm * 15.6mm
Weight 520g (typical)
Backlight 11S4P WLED, 30,000 hours
Touch Screen Without touch screen
Surface Treatment Antiglare, Matte
Environmental Specifications
Operating Temperature -30°C to 85°C
Storage Temperature -30°C to 85°C
Vibration Level 2.9G (28.4 m/s²) maximum

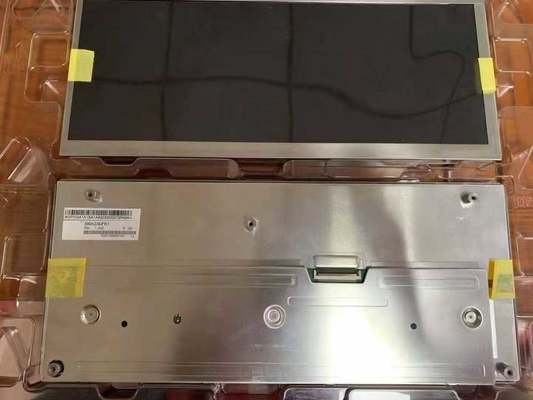

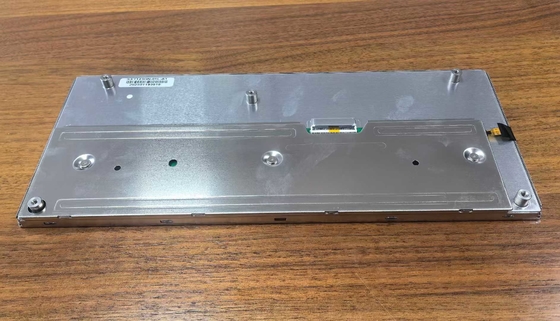

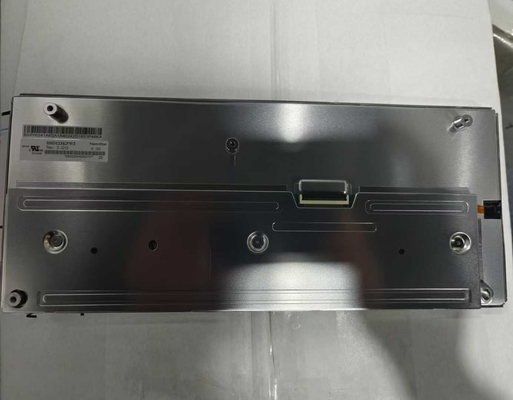

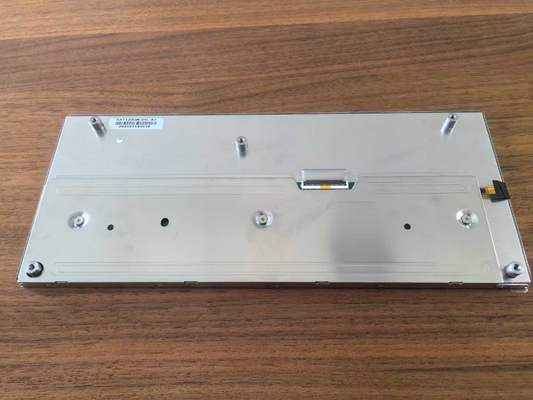

Product Images
Hannstar 12.3inch Car LCD Display with 1920*720 Pixels 850 cd/m² Brightness and 50Pin IPS for Automotive Applications 0 Hannstar 12.3inch Car LCD Display with 1920*720 Pixels 850 cd/m² Brightness and 50Pin IPS for Automotive Applications 1
Note: This model entered mass production in Q2 2017 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting HannStar or their authorized agents directly.
