BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels 350cd/m2 Brightness and 30PIN Interface

Name: BOE 15.6 Inch Industrial LCD Display TFT-LCD Panel with 1920x1080 Pixels 350cd/m2 Brightness and 30PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: PV156FHM-N30
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	PV156FHM-N30
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1280pixels

Style:

30PIN IPS

Brightness:

350CD/M2

Color:

16.7m

Contrast Ratio:

1000 :1

Working Life:

15K Hours

Type:

Lcm

Size:

15.6inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

PV156FHM-N30 Industrial Lcd

15.6nch Industrial Lcd

350cd/M2 Industrial Lcd

Product Description

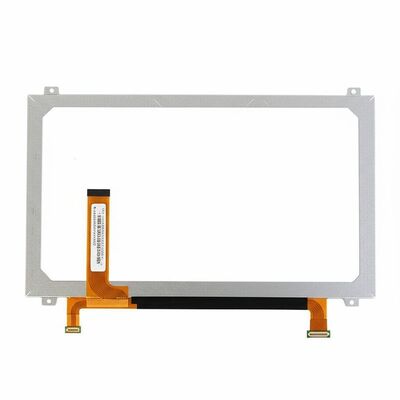

BOE 15.6-inch Industrial LCD Display Panel

Model PV156FHM-N30 is a high-performance 15.6-inch industrial LCD panel featuring Full HD resolution and robust construction for demanding industrial applications.

Product Overview

The PV156FHM-N30 (Product Code: BOE08C1) is a 15.6" diagonal a-Si TFT-LCD display panel manufactured by BOE Technology Group Co., Ltd. This industrial-grade panel includes an integrated WLED backlight system with LED driver and is designed without a touch screen interface.

Key Features

15.6-inch diagonal display with Full HD 1920*1080 resolution
141 PPI pixel density for sharp image quality
350 cd/m² typical luminance for bright visibility
WLED backlight with LED driver and 15,000-hour lifespan
eDP 1.2 interface with 30-pin connector
Industrial-grade operating temperature range: 0°C to 50°C
Matte anti-glare surface treatment

Technical Specifications

Brand	BOE
Model Number	PV156FHM-N30
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)*1080 (FHD), 141 PPI
Active Area	344.16mm * 193.59mm
Outline Dimensions	359.5mm * 206.92mm * 5.4mm
Luminance	350 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	12ms (Typical, Tr+Td)
Viewing Angle	45°/45°/20°/40° (Left/Right/Up/Down, CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	262K colors, 47% NTSC
Light Source	WLED [9S4P], 15K hours, With LED Driver
Weight	400g (Maximum)
Interface	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin Connector
Power Supply	3.3V (Typical)
Frame Rate	60Hz
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	Maximal 1.5G (14.7 m/s²)

Production Information: This model entered mass production in Q3 2019 and is currently in active production. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and specification details. Information provided is for reference only and should not be used as the sole basis for decision-making.
