BOE 15.6inch Industrial LCD Display TFT-LCD Panel with 1920x1080pixels Resolution and 400cd/m2 Brightness

BOE 15.6inch Industrial LCD Display TFT-LCD Panel with 1920x1080pixels Resolution and 400cd/m2 Brightness

BOE 15.6inch Industrial LCD Display TFT-LCD Panel with 1920x1080pixels Resolution and 400cd/m2 Brightness

Brand Name: BOE
Model Number: PV156FHM-N20
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1920*1280pixels
Style:
30PIN IPS
Brightness:
400CD/M2
Color:
16.7m
Contrast Ratio:
800 :1
Working Life:
30K Hours
Type:
Lcm
Size:
15.6inch
Lamp Type:
WLED
Voltage:
3.3V
Packaging Details:
Industrial packing
Highlight:

PV156FHM-N20 Industrial Lcd

,

15.6nch Industrial Lcd

,

30PIN Industrial Lcd

Product Description

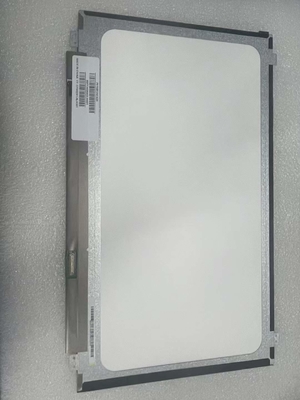

BOE 15.6-inch Industrial LCD Display - Model PV156FHM-N20
The PV156FHM-N20 is a high-performance 15.6-inch industrial LCD panel featuring Full HD resolution, robust construction, and reliable operation for demanding industrial applications.
Product Overview
This 15.6" diagonal a-Si TFT-LCD display panel from BOE Technology Group features an integrated WLED backlight system with LED driver, designed specifically for industrial environments. The panel operates within a wide temperature range and withstands significant vibration levels.
Key Features
  • 15.6-inch Full HD display (1920*1080 pixels)
  • High brightness: 400 cd/m² typical
  • Industrial-grade temperature range: 0°C to 50°C
  • Robust construction with 1.5G vibration resistance

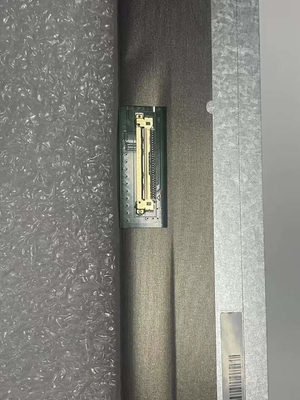

  • eDP 1.2 interface with 30-pin connector
  • WLED backlight with 15,000-hour lifespan
  • Matte anti-glare surface treatment
Technical Specifications
Product Code BOE08C1
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)*1080 (FHD), 141 PPI
Active Area 344.16mm * 193.59mm
Outline Dimensions 359.5mm * 206.92mm * 5.4mm
Luminance 400 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Response Time 12ms (Typical, Tr+Td)
Viewing Angle 45/45/20/40 (Left/Right/Up/Down, CR≥10)
Operating Mode TN, Normally White, Transmissive
Color Support 262K colors, 47% NTSC
Interface eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin connector
Power Supply 3.3V (Typical)
Weight 400g (Maximum)
Environmental Specifications
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Vibration Resistance 1.5G (14.7 m/s²)
BOE 15.6inch Industrial LCD Display TFT-LCD Panel with 1920x1080pixels Resolution and 400cd/m2 Brightness 0
BOE 15.6inch Industrial LCD Display TFT-LCD Panel with 1920x1080pixels Resolution and 400cd/m2 Brightness 1
Note: This model entered mass production in Q3 2019 and is currently in production. For the latest production status and detailed specifications for integration into your products, we strongly recommend contacting BOE or their authorized agents directly.
