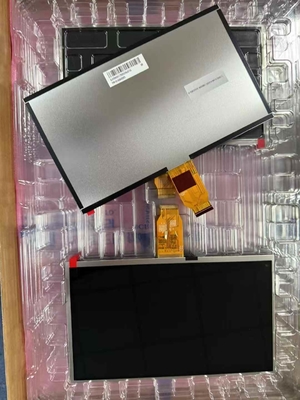

TIANMA 10.1inch car lcd panel TM101DDHG01 industrial Screen Monito 40 Pin 1024*600pixels

TM101DDHG01-00 is a 10.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Automotive Display etc.Built-in HX8282*1 + HX8677*2 driver IC. According to the information stored in einklcd this model mass production on Q2, 2016, Now this model is discontinued. We inputted this model's specification on Oct 27 2015 for the first time, and the latest update on Sep 29 2024. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail of TM101DDHG01-00. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand TIANMA

Model P/N:TM101DDHG01-00
Diagonal Size:10.1"

Panel Type: a-Si TFT-LCD, LCM
Resolution1024(RGB)×600, WSVGA 117PPI

Pixel Format :RGB Vertical Stripe
Active Area:222.72(W)×125.28(H) mm

Bezel Opening 225.52(W)×128.10(H) mm
Outline Size: 235(W)×143(H) ×5.4(D) mm

Surface Antiglare, Hard coating (3H)
Brightness 450 cd/m² (Typ.)

Contrast Ratio:800:1 (Typ.) (TM)
Viewing Angle 80/80/75/80 (Typ.)(CR≥10) Left / Right / Up / Down

Display ModeTN, Normally White, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on: 6 o'clock

Response Time:7/9 (Typ.)(Tr/Td)
Display Colors :262K/16.7M 47% NTSC

Lamp Type:WLED , 30K hours , With LED Driver
Frequency 60Hz

Touch Screen:Without
Panel Weight 202g (Typ.)

Application :Industrial Automotive Display
Signal Interface LVDS (1 ch, 6/8-bit) , 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70 °C ;

Storage Temp.: -30 ~ 80 °C
