Samsung 55" LCD Video Wall Panel with 1920*1080pixels Resolution 500cd/m² Brightness and 50k Hours Working Time

Samsung 55

Samsung 55" LCD Video Wall Panel with 1920*1080pixels Resolution 500cd/m² Brightness and 50k Hours Working Time

Brand Name: samsung
Model Number: LTI550HN11
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
1.07B Colors
Model:
Lcm
Style:
Wide Screen High Resolution 1920*1080PIXELS
Brightness:
500cd
Connector:
51PIN
Contrast Ratio:
4000:1
Working Time:
50k Hours
Input Voltage:
12V
Signal Type:
LVDS
Packaging Details:
Industrial packing
Highlight:

1920*1080pixels Lcd Video Wall

,

500cd/M2 Lcd Video Wall

,

55” Glass OLED Lcd Video Wall

Product Description
Samsung 55" Glass OLED Video Wall Display Panel
The LTI550HN11 is a 55-inch diagonal a-Si TFT-LCD display panel from Samsung Display Co., Ltd., featuring an integral WLED backlight system with LED driver. This professional-grade panel is engineered for video wall applications with ultra-narrow bezel design and exceptional performance characteristics.
Key Features
  • 55" diagonal display with 1920×1080 Full HD resolution
  • 500 cd/m² brightness for vibrant visibility
  • Ultra-narrow 3.9mm active-to-active bezel for seamless video walls
  • 50,000 hours LED backlight lifespan with integrated driver
  • 100% sRGB color gamut with 16.7 million display colors
  • Matte anti-glare surface with hard coating (3H)
  • Landscape and portrait orientation support
Technical Specifications
Model Number LTI550HN11
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080 (FHD, 40 PPI)
Active Area 1209.6mm × 680.4mm
Brightness 500 cd/m² (Typical)
Contrast Ratio 4000:1 (Typical)
Viewing Angle 89°/89°/89°/89° (Left/Right/Up/Down)
Response Time 8ms (Typical, G to G)
Display Colors 16.7 Million, 100% sRGB
Signal Interface LVDS (2 ch, 8-bit), 51-pin connector
Input Voltage 12.0V (Typical)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 65°C
Outline Dimensions 1213.5mm × 684.3mm × 67.7mm
Video Wall Performance
This panel includes advanced video processing capabilities with embedded MEMC circuit supporting 20Hz (60Hz input) and 240Hz (60Hz input) modes, plus 120Hz panel combined with 120Hz backlight technology for smooth motion performance in video wall configurations.
Production Status Note: This model entered mass production in Q2 2015 with final shipments in Q3 2020 and is now discontinued. For integration into future products, we recommend contacting Samsung or their authorized agents for the latest production and specification details.
Product Images

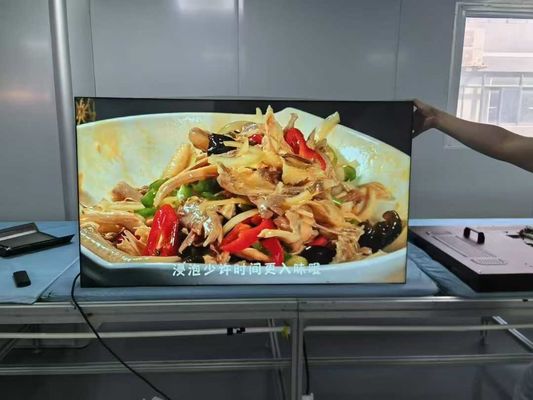

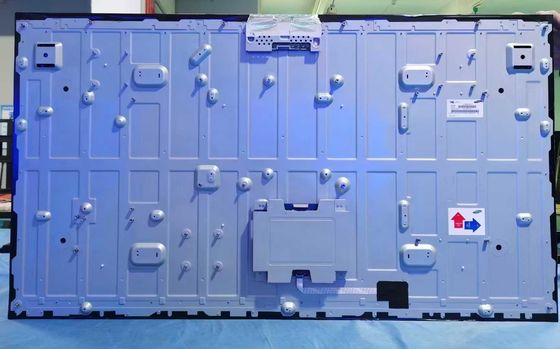

Samsung 55" LCD Video Wall Panel with 1920*1080pixels Resolution 500cd/m² Brightness and 50k Hours Working Time 0 Samsung 55" LCD Video Wall Panel with 1920*1080pixels Resolution 500cd/m² Brightness and 50k Hours Working Time 1
