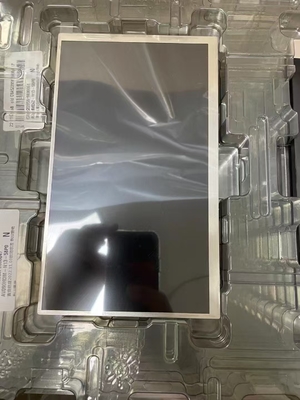

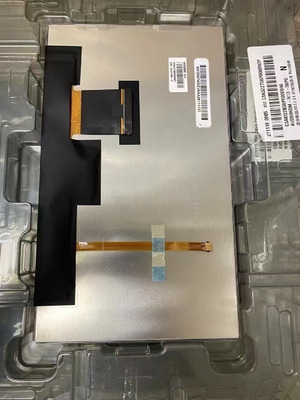

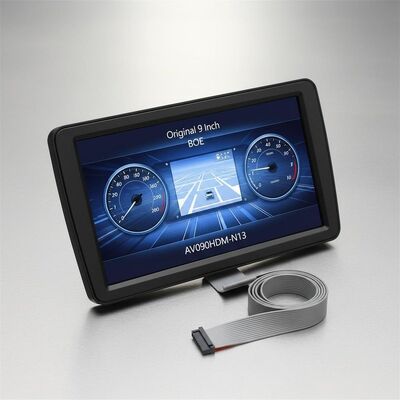

9Inch BOE Car LCD Display modelAV090HDM-N13 163PPI 1280*720Pixels 60pin automotive display

AV090HDM-N13 (Alias: COG-VLSZT047-01) is a 9.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -35 ~ 85°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 3.0G (29.4 m/s²). It's general features are summarized by Einklcd in the following: DCI-P3, sRGB, Wide Temperature, Hight Brightness, WLED Backlight, U/D,L/R Reverse, Matte . Based on its features, Einklcd recommend that this model be applied to Automotive Display etc.Built-in HX8290-B-LT driver IC. According to the information stored in Einklcd this model mass production on Q3, 2019, Now this model is in production. We inputted this model's specification on Mar 7 2022 for the first time, and the latest update on Sep 8 2023. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of AV090HDM-N13. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: BOE

Model P/N: AV090HDM-N13

Compatible Model 1 Compatible
Diagonal Size: 9.0"Panel

Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×720, WXGA 163PPI

Pixel Format: RGB Vertical Stripe
Active Area: 198.72(W)×111.78(H) mm

Bezel Opening: 200.9(W)×113.8(H) mm
Outline Size: 210.7(W)×124.45(H) ×8.15(D) mm

Surface Antiglare, Hard coating
Brightness: 800 cd/m² (Typ.)

Contrast Ratio: 900:1 (Typ.) (TM)
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down

 Display ModeADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry

Response Time:25 (Typ.)(Tr+Td)
Display Colors: 16.7M 100%

sRGB Lamp Type: 9S3P WLED , 30K hours , Without Driver
Frequency: 60Hz

Touch Screen:Without
Panel Weight-Application: Automotive Display
Signal Interface: LVDS (1 ch, 8-bit) , 60 pins FPC
Input Voltage:3.3/18.4/12.2V (Typ.)(VCC/VHG/CGL)
Environment Operating Temp.: -35 ~ 85 °C ;

Storage Temp.: -40 ~ 90 °C ;

Vibration Level: 3.0G (29.4 m/s²)
