8Inch BOE Car LCD Display with 800 cd/m² Brightness 1280*720 Pixels Resolution and 30Pin Connector

Name: 8Inch BOE Car LCD Display with 800 cd/m² Brightness 1280*720 Pixels Resolution and 30Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AV080HDM-N19
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	AV080HDM-N19
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Document:

LCD screen AV080HDM-N19.pdf

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

800ccd/m2

Resolution:

1280*720pixels

Contrast Ratio:

900:1

Color:

16.7M

Working Life:

30k Hours

Connector:

30P

Touch Panel:

Without

Working Voltage:

3.3v

Packaging Details:

Industrial packing

Highlight:

AV080HDM-N19

High Brightness Car LCD Display

8Inch Car LCD Display

Product Description

8-Inch BOE Automotive LCD Display

High-brightness 800 cd/m² 1280*720 resolution display panel designed for automotive applications with wide temperature operation and robust construction.

Product Overview

The AV080HDM-N19 is an 8.0-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group, featuring integrated WLED backlight system and engineered for demanding automotive environments.

Key Features

High brightness: 800 cd/m² for excellent visibility
WXGA resolution: 1280*720 pixels at 184 PPI
Wide operating temperature: -30°C to 85°C
Advanced viewing angles: 85/85/85/85 (CR≥10)
Vibration resistant: Up to 3.0G (29.4 m/s²)
Multiple refresh rate options including 120Hz MEMC
16.7 million color depth with 70% NTSC gamut

Technical Specifications

Brand & Model	BOE AV080HDM-N19
Display Size	8.0-inch diagonal
Resolution	1280(RGB)*720 (WXGA), 184 PPI
Panel Type	a-Si TFT-LCD with LCM
Brightness	800 cd/m² (Typical)
Contrast Ratio	900:1 (Typical)
Active Area	176.64mm * 99.36mm
Outline Dimensions	192.8mm * 116.9mm * 12.8mm
Backlight	8S3P WLED, 30,000 hours lifetime
Signal Interface	LVDS (1 ch, 8-bit) + SPI, 30-pin FPC
Operating Voltage	3.3V (Typical)
Refresh Rates	60Hz standard, 120Hz MEMC, 240Hz options

Environmental Specifications

Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 85°C
Vibration Resistance	3.0G (29.4 m/s²) maximum

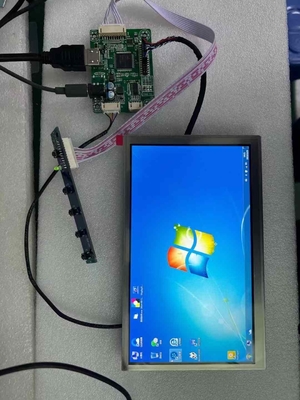

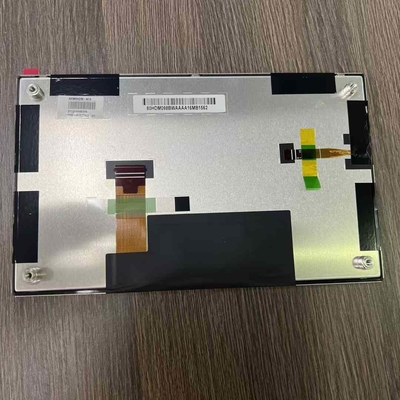

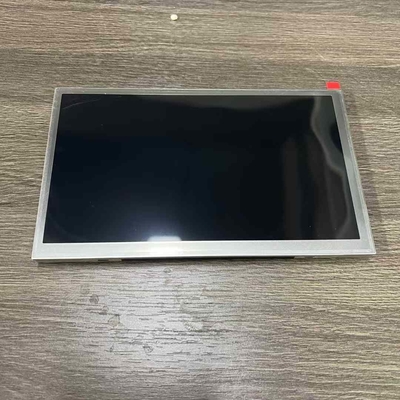

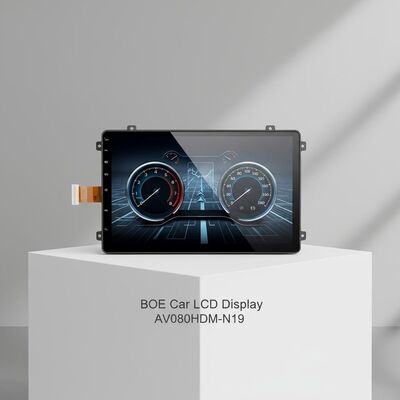

Product Image

Production Status Note: This model entered mass production in Q2 2020 and is currently in production. For the latest specifications and availability, we recommend contacting BOE or their authorized agents directly.

Application

Specifically designed for automotive display systems requiring high brightness, wide temperature operation, and robust performance in challenging environments.
