Tianma 7Inch Industrial LCD Display 800X480Pixels 300cd/M2 TFT-LCD Panel with 50PIN IPS

Name: Tianma 7Inch Industrial LCD Display 800X480Pixels 300cd/M2 TFT-LCD Panel with 50PIN IPS
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM070RDH13-40
Price: 43.00 USD
Availability: InStock

Brand Name:	Tianma
Model Number:	TM070RDH13-40
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*480pixels

Style:

50PIN IPS

Brightness:

300CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

20K Hours

Type:

Lcm

Size:

71inch

Lamp Type:

WLED

Voltage:

3.3V

Model Numberer:

TM070RDH13-40

Packaging Details:

Industrial packing

Highlight:

TM070RDH13-40 Industrial LCD

300cd/M2 Industrial LCD Model

800X480Pixels Industrial LCD Model

Product Description

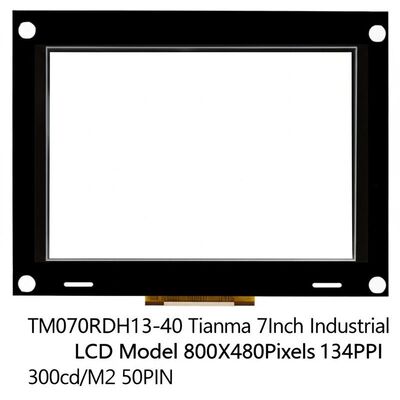

TM070RDH13-40 Tianma 7-Inch Industrial LCD Display

The TM070RDH13-40 from Tianma Microelectronics Co., Ltd. is a high-performance 7.0-inch industrial TFT-LCD display panel featuring 800*480 WVGA resolution, 134 PPI pixel density, and 300 cd/m² brightness. This robust display is engineered for demanding industrial applications with wide operating temperature ranges and reliable performance.

Product Overview

This 7-inch diagonal a-Si TFT-LCD display panel includes an integrated WLED backlight system and operates without a backlight driver or touch screen. Designed for industrial environments, it offers excellent visibility and durability for applications including industrial equipment, digital photo frames, and portable DVD players.

Technical Specifications

Brand	TIANMA
Model Number	TM070RDH13-40
Diagonal Size	7.0 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*480 (WVGA), 134 PPI
Active Area	154.08(W) * 85.92(H) mm
Bezel Opening	157.08(W) * 89.39(H) mm
Outline Dimensions	164.9 * 100 * 6 mm (HVD)
Surface Treatment	Antiglare
Luminance	300 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	80/80/60/80 (Typical, CR≥10)
Response Time	20 ms (Typical, Tr+Td)
Optimal Viewing	12 o'clock position
Display Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M, 50% NTSC
Backlight	3S6P WLED, 20K hours lifespan, No Driver
Weight	160g
Refresh Rate	60Hz
Touchscreen	Without touch screen
Signal Interface	Parallel RGB (1 channel, 6/8-bit), 50-pin FPC
Voltage Supply	3.3/10.4/16.0/-7.0V (Typical) (DVDD/AVDD/VGH/VGL)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

Built-in HX8264-D0 + HX8664-B0 driver IC
WLED backlight with 20,000 hours lifespan
U/D, L/R reverse functionality
6/8-bit interface support
Matte surface treatment for reduced glare
Wide operating temperature range for industrial use

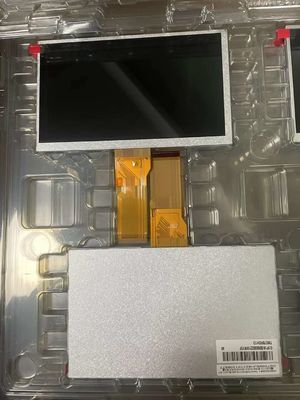

Product Image

Production Status Note: This model entered mass production in Q4 2014 and is currently in production. Specifications were last updated on August 31, 2023. For the latest production status and detailed specifications, we strongly recommend contacting Tianma or their authorized distributors directly.
