Industrial LCD Display
>
15.6 Inch EV156FHM-N10 Industrial Lcd Display 1920x1080 Pixels 141 PPI 500 Cd/M² 3.3V 30 Pin

15.6 Inch EV156FHM-N10 Industrial Lcd Display 1920x1080 Pixels 141 PPI 500 Cd/M² 3.3V 30 Pin

Brand Name: BOE
Model Number: EV156FHM-N10
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
600*800pixels
Style:
30PIN IPS
Brightness:
500cd/m2
Color:
16.7m
Contrast Ratio:
1200 :1
Working Life:
50K Hours
Type:
Lcm
Size:
15.6inch
Lamp Type:
WLED
Voltage:
3.3V
Signal Interface:
A-Si TFT-LCD, LCM 30pin
Supply Ability:
3000pcs per week
Highlight:

15.6 Inch Industrial Lcd Display

,

EV156FHM-N10 Industrial Lcd Display

,

30 Pin Industrial Lcd Panel

Product Description
BOE 15.6inch Industrial & Medical imaging LCD Panel EV156FHM-N10 1920*1080pixels 141PPI 500 cd/m² 3.3V 30pin

BOE Technology Group Co., Ltd. (hereafter called BOE) EV156FHM-N10 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F , Made by Hefei BOE. Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging etc. According to the information stored in einklcd this model mass production on Q2, 2019, Now this model is in production. We inputted this model's specification on Jun 30 2020 for the first time, and the latest update on Jan 12 2022. If you want to embed EV156FHM-N10 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The EV156FHM-N10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand
BOE
Model P/N
EV156FHM-N10
Diagonal Size
15.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080, FHD 141PPI
Pixel Format
RGB Vertical Stripe
Active Area
344.16(W)×193.59(H) mm
Bezel Opening
348.2(W)×197.6(H) mm
Outline Size
363.8(W)×216(H) ×9.9(D) mm
Surface
Hard coating
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
ADS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
20 (Typ.)(Tr+Td)
Display Colors
16.7M 79% NTSC
Lamp Type
8S4P WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
850g (Max.)
Application

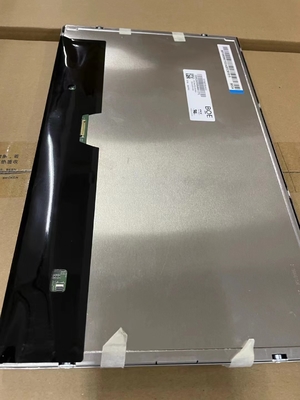

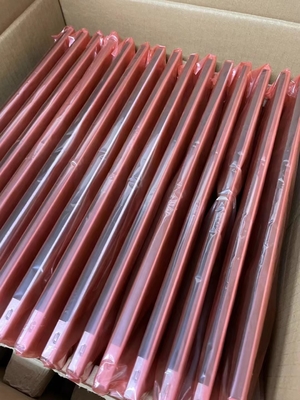

15.6 Inch EV156FHM-N10 Industrial Lcd Display 1920x1080 Pixels 141 PPI 500 Cd/M² 3.3V 30 Pin 0 15.6 Inch EV156FHM-N10 Industrial Lcd Display 1920x1080 Pixels 141 PPI 500 Cd/M² 3.3V 30 Pin 1
Signal Interface
eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C

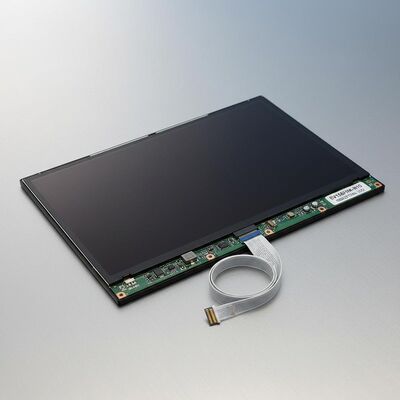

15.6 Inch EV156FHM-N10 Industrial Lcd Display 1920x1080 Pixels 141 PPI 500 Cd/M² 3.3V 30 Pin 2
