Orustech 5.7 Inch Industrial LCD Panel with 1100cd/M2 Brightness and 33PIN Interface

Name: Orustech 5.7 Inch Industrial LCD Panel with 1100cd/M2 Brightness and 33PIN Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: COM57H5M55KSC
Price: 43.00 USD
Availability: InStock

Brand Name:	Ortustech
Model Number:	COM57H5M55KSC
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

320*240pixels

Style:

33PIN IPS

Brightness:

1100CD/M2

Color:

262K

Contrast Ratio:

600 :1

Working Life:

70K Hours

Type:

Lcm

Size:

5.7inch

Lamp Type:

WLED

Voltage:

3.3V

Packaging Details:

Industrial packing

Highlight:

5.7 Inch Lcd Panel Industry

COM57H5M55KSC Lcd Panel Industry

320X240P Industrial Lcd Panel

Product Description

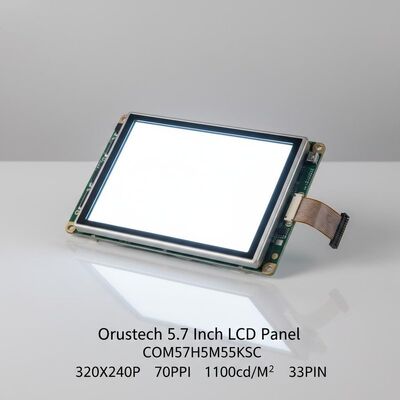

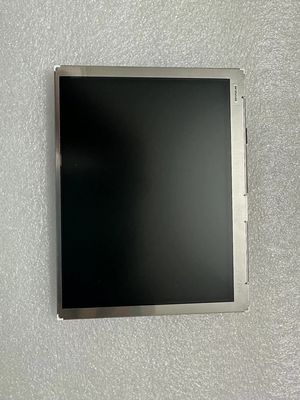

Orustech 5.7 Inch LCD Panel COM57H5M55KSC

Industrial LCD panel featuring 320*240 QVGA resolution, 1100 cd/m² ultra-high brightness, and transflective technology for optimal visibility in demanding environments.

Product Overview

COM57H5M55KSC is a 5.7" diagonal a-Si TFT-LCD display panel from ORTUS Technology Co., Ltd. This industrial-grade panel features an integral WLED backlight system and is designed for applications requiring high brightness and reliability.

Key Features

• Ultra High Brightness (1100 cd/m²)
• Transflective Display Technology
• Wide Operating Temperature Range (-20°C to 80°C)
• Long Life WLED Backlight (≥70,000 hours)
• 180° Reverse Viewing Capability
• Hard Coated Surface (3H Hardness)

Technical Specifications

Brand	Ortustech
Model P/N	COM57H5M55KSC
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)*240, QVGA 70PPI
Active Area	115.2(W)*86.4(H) mm
Brightness	1100 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM) 5:1 (Typ.) (RF)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Response Time	40/60 (Max.)(Tr/Td)
Display Colors	262K
Backlight	5S2P WLED, 70K hours, Without Driver
Signal Interface	Parallel RGB (1 ch, 6-bit), 33 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-20°C to 80°C
Storage Temperature	-30°C to 80°C
Panel Weight	119g (Typ.)
Touch Screen	Without

Physical Dimensions

Outline Size: 130.32(W)*101.2(H)*10(D) mm
Bezel Opening: 118.7(W)*89.9(H) mm
Surface Treatment: Hard coating (3H)

Application Examples

This high-brightness LCD panel is ideal for industrial equipment, outdoor displays, and applications requiring excellent visibility in various lighting conditions.

Important Note: This model entered mass production in Q1 2013 and is now discontinued. For current production status and latest specifications, we strongly recommend contacting Ortustech or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
