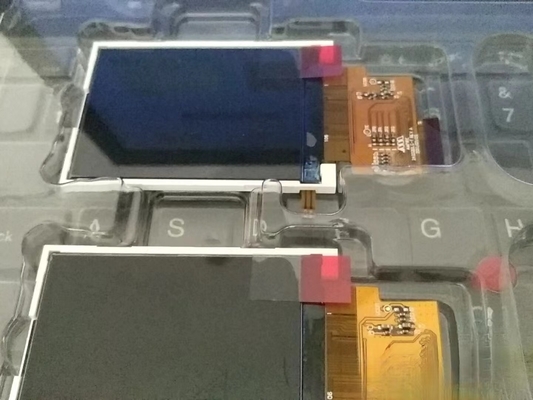

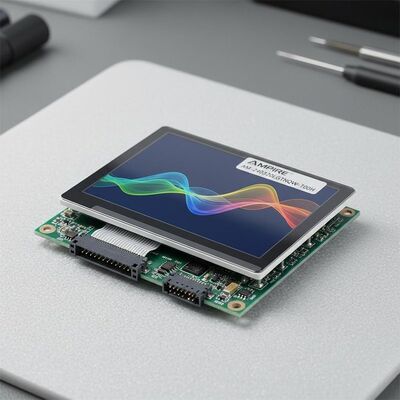

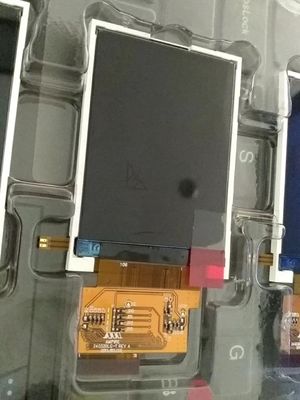

AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN

AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN
AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN

Large Image :  AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN

Product Details:
Place of Origin: China
Brand Name: AMPIRE
Certification: Rohs,CE,FCC
Model Number: AM-240320LGTNQW-00H
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

AMPIRE Tft Lcd Display Module AM-240320LGTNQW-T00H 2.4 Inch 40PIN 320x240 Pixels With Touch Panel 166PPI 51PIN

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Brightness: 300ccd/m2
Resolution: 320*240pixels Contrast Ratio: 200:1
Color: 262k Working Life: 30k Hours
Connector: 51P Touch Panel: Without
High Light:

2.4 Inch Tft Lcd Display Module

,

51PIN Tft Lcd Display Module

,

2.4 Inch Pc Lcd Module

AMPIRE AM-240320LGTNQW-T00H 2.4inch LCD Module 40PIN 320x240 Pixels with touch panel 166PPI 51PIN



AM-240320LGTNQW-T00H is a 2.4" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 70°C . It's general features are summarized by einklcd in the following: Portrait type, With Touch, WLED Backlight . Based on its features, einklcd recommend that this model be applied to Mobile Phone etc.Suggest HX8347-D driver IC. According to the information stored in einklcd this model mass production on Q4, 2011, Now this model is discontinued.We inputted this model's specification on Dec 17 2016 for the first time, and the latest update on Jul 23 2021. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AMPIRE or it's agent to learn lateast production and specification detail of AM-240320LGTNQW-T00H. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making



Brand

AMPIRE

Model P/NAM-240320LGTNQW-T00H
Diagonal Size: 2.4"Panel Typea-Si TFT-LCD, LCM
Resolution:240(RGB)×320, QVGA 166PPI Pixel

Format: RGB Vertical Stripe
Active Area:36.72(W)×48.96(H) mmBezel Opening-
Outline Dim.43.6(H)×85.5(V) ×4.05(D) mmTreatment-
Luminance-Contrast Ratio200:1 (Typ.) (TM)
View Direction:12 o'clock

Response Time15/20 (Typ.)(Tr/Td)
Viewing Angle-Operating ModeTN, Normally White, Transmissive
Support Color 262K 58% NTSC Light Source WLED [4S1P] , W/O Driver
Weight :TBDD

esigned For Mobile Phone
Frame Rate-Touch Panel4-wire Resistive Touch
Interface Type 8/9/16/18-bit 8080 parallel , 51 pins FPC
Power Supply 2.8/2.8V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ;

Storage Temperature: -30 ~ 70 °C
