| Brand Name: | Innolux |
| Model Number: | G121AGE-L03 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

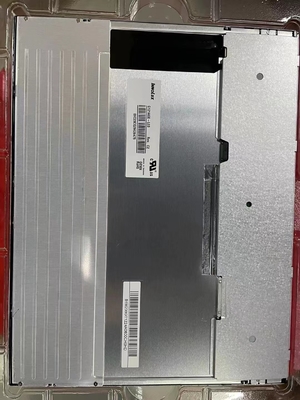

Innolux 12.1Inch Industrial LCD Display Panel Healthcare display G121AGE-L03 800(RGB)×600 SVGA 82PPI 20P 450 cd/m²
Innolux Corporation (hereafter called Innolux) G121AGE-L03 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Healthcare etc. According to the information stored in einklcd this model mass production on Q2, 2013 and last shippment on Q2, 2023, Now this model is in production. We inputted this model's specification on Apr 8 2013 for the first time, and the latest update on Jun 14 2022. If you want to embed G121AGE-L03 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The G121AGE-L03 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
| Outline Size |
|---|
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| 260.5(W)×204(H) ×8.9(D) mm |
| 450 cd/m² (Typ.) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| 262K/16.2M 50% NTSC |
| 60Hz |
| 506/530g (Typ./Max.) |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| Antiglare, Hard coating (3H) |
| 1500:1 (Typ.) (TM) |
| Super MVA, Normally Black, Transmissive |
| 13/12 (Typ.)(Tr/Td) |
| WLED , 50K hours , With LED Driver |
| Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|---|---|
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
|
|
