Innolux 12.1 Inch Industrial LCD Display Panel with 600 cd/m² Brightness and 800x600 SVGA Resolution

Name: Innolux 12.1 Inch Industrial LCD Display Panel with 600 cd/m² Brightness and 800x600 SVGA Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G121S1-L02
Price: 43.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	G121S1-L02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

600CD/M2

Color:

262k

Contrast Ratio:

1500 :1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

Antiglare LCD Display Panel

SVGA 82PPI Industrial LCD Display

600Cd/M2 Automotive LCD Display

Product Description

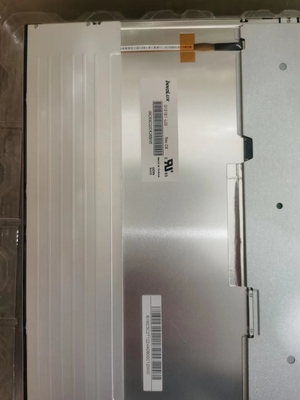

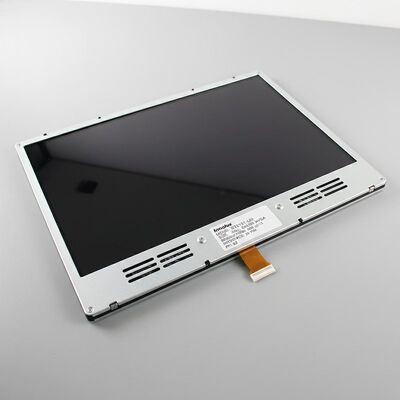

Innolux 12.1 Inch LCD Display Panel G121S1-L02

800(RGB)*600 SVGA 82PPI 20P 600 cd/m²

Product Overview

The Innolux G121S1-L02 is a 12.1-inch industrial LCD display panel featuring a Super MVA panel with wide temperature operation, high brightness, and long-life WLED backlight. Designed for demanding applications in industrial and automotive environments.

Key Features

12.1-inch diagonal a-Si TFT-LCD display
High brightness: 600 cd/m²
Wide operating temperature: -30°C to 80°C
Super MVA technology with 1500:1 contrast ratio
WLED backlight with 50,000-hour lifespan
LVDS interface with 20-pin connector
Antiglare treatment with hard coating (3H)
Suitable for industrial and automotive applications

Technical Specifications

Model Number	G121S1-L02
Diagonal Size	12.1 inches
Resolution	800(RGB)*600 (SVGA)
Pixel Density	82 PPI
Active Area	246.0 * 184.5 mm
Outline Dimensions	260.5 * 204 * 8.9 mm
Luminance	600 cd/m²
Contrast Ratio	1500:1 (Typical)
Viewing Angle	89/89/89/89 (L/R/U/D)
Response Time	13/12 ms (Tr/Td)
Panel Technology	Super MVA, Normally Black
Color Depth	262K/16.2M colors
Color Gamut	50% NTSC
Backlight Type	WLED with driver
Backlight Life	≥ 50,000 hours
Interface	LVDS (1 channel, 6/8-bit)
Connector	20-pin
Supply Voltage	3.3V / 5.0V
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 85°C
Vibration Resistance	1.5G (14.7 m/s²)
Weight	520g (Typical) / 550g (Maximum)

Important Note: This model entered mass production in Q1 2010 and was last shipped in Q4 2022. It is now discontinued. For current production status and latest specifications, please contact Innolux or their authorized distributors.
