NEC 8.4 Inch Industrial LCD Display Panel with 800cd/m2 Brightness SVGA 119PPI Resolution and 20P Interface

Name: NEC 8.4 Inch Industrial LCD Display Panel with 800cd/m2 Brightness SVGA 119PPI Resolution and 20P Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL8060BC21-11F
Price: 43.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL8060BC21-11F
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

800CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

70K Hours

Packaging Details:

Industrial packing

Highlight:

NL8060BC21-11F Industrial LCD Display

IPS LCD Display Panel

800cd/m2 LCD Display Panel

Product Description

NEC 8.4 Inch Industrial LCD Display Panel

Model NL8060BC21-11F - 800(RGB)*600 SVGA Resolution, 119PPI, 800 cd/m² Brightness

Product Overview

The NL8060BC21-11F is an 8.4-inch diagonal a-Si TFT-LCD display panel from NEC LCD Technologies featuring an integral WLED backlight system. This industrial-grade panel operates in extreme temperatures from -30°C to 80°C and withstands vibration levels up to 2.0G (19.6 m/s²).

Key Features

Wide operating temperature range (-30°C to 80°C)
High brightness 800 cd/m² display
Replaceable lamp with ≥70,000 hours lifespan
WLED backlight technology
180° reverse viewing capability
6/8-bit color depth with ColorXcell enhancement

Technical Specifications

Brand	NEC
Model Number	NL8060BC21-11F
Diagonal Size	8.4-inch Panel
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*600, SVGA 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	170.4(W)*127.8(H) mm
Bezel Opening	174.0(W)*131.4(H) mm
Outline Size	200(W)152(H)8.7(D) mm
Brightness	800 cd/m² (Typical)
Viewing Angle	80/80/80/80 (CR≥10) Left/Right/Up/Down
Display Colors	262K/16.7M, 40% NTSC
Contrast Ratio	800:1 (Typical)
Display Mode	TN, Normally White, Transmissive
Response Time	3/15 ms (Typical, Tr/Td)
Lamp Type	3 strings WLED, 70K hours lifespan
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Input Voltage	3.3V (Typical)
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Vibration Level	2.0G (19.6 m/s²)
Weight	260/280g (Typical/Maximum)
Surface Treatment	Antiglare, Hard coating (3H)
Application	Industrial

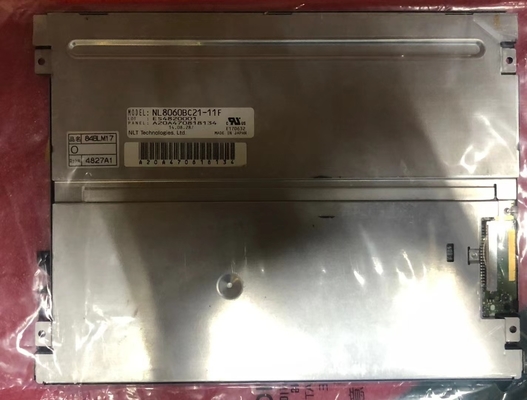

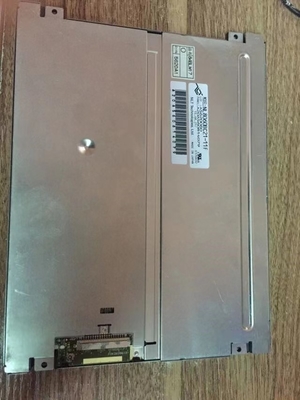

Product Image

Important Note: This model entered mass production in Q3 2010 and is currently in production. Specifications are provided according to manufacturer datasheet but may be subject to change. For the latest production status and detailed specifications, please contact NEC or their authorized agents directly.
