NEC 8.4 Inch Industrial LCD Display Panel with 800x600 SVGA Resolution and 400cd/m2 Brightness

Name: NEC 8.4 Inch Industrial LCD Display Panel with 800x600 SVGA Resolution and 400cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NL8060BC21-11D
Price: 43.00 USD
Availability: InStock

Brand Name:	NEC
Model Number:	NL8060BC21-11D
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

800*600pixels

Style:

20PIN IPS

Brightness:

400CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

70K Hours

Packaging Details:

Industrial packing

Highlight:

TN Industrial LCD Display

NL8060BC21-11D LCD Display Panel

SVGA 119PPI Industrial LCD Display

Product Description

NEC 8.4 Inch LCD Display Panel NL8060BC21-11D

NEC 8.4 Inch Industrial LCD Display Panel NL8060BC21-11D - 800(RGB)*600 SVGA resolution, 119PPI pixel density, and 400 cd/m² brightness. This 8.4" diagonal a-Si TFT-LCD display panel features wide temperature operation (-30°C to 80°C) and is designed for demanding industrial applications.

Key Features

8.4" diagonal a-Si TFT-LCD display panel
SVGA 800(RGB)*600 resolution, 119PPI
400 cd/m² brightness for clear visibility
Wide operating temperature: -30°C to 80°C
WLED backlight with 70,000+ hour lifespan
LVDS signal interface (1 channel, 6/8-bit)
Industrial-grade construction and reliability

Technical Specifications

Model Number	NL8060BC21-11D
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*600, SVGA
Pixel Density	119 PPI
Active Area	170.4mm * 127.8mm
Brightness	400 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	80/80/80/80 (CR≥10)
Response Time	3/15 ms (Typical, Tr/Td)
Display Colors	262K/16.7M
Signal Interface	LVDS (1 channel, 6/8-bit), 20-pin connector
Input Voltage	3.3V (Typical)
Operating Temperature	-30°C to 80°C
Storage Temperature	-30°C to 80°C
Vibration Level	2.0G (19.6 m/s²)
Weight	260/280g (Typical/Maximum)
Surface Treatment	Antiglare, Hard coating (3H)
Backlight	3 strings WLED, 70K hours
Application	Industrial

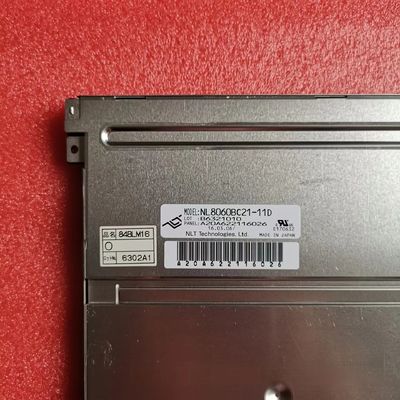

Product Image

Additional Information

This industrial LCD panel features wide temperature operation, replaceable lamps, WLED backlight technology, and extended lifespan. The panel supports 180° reverse display and is ideal for industrial applications requiring reliable performance in challenging environments.
