AUO 15.6inch Industrial LCD Display with 500 cd/m² Brightness 1366x768 Resolution and 30pin LVDS Interface

Name: AUO 15.6inch Industrial LCD Display with 500 cd/m² Brightness 1366x768 Resolution and 30pin LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G156XW01 V2
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G156XW01 V2
MOQ:	10PCS
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30K pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,UL,FCC

Material:

Glass

Voltage:

5.0 V

Brightness:

500cd

Resolution:

1366*768pixels

Interface Type:

30pin LVDS

Contrast Ratio:

500:1

Working Life:

50k Hour

Light Source:

WLED

Packaging Details:

industrial package

Highlight:

AUO Industrial Panel Pc Touch Screen

500 Cd/M2 Industrial Panel Pc Touch Screen

G156XW01Industrial Lcd Monitor

Product Description

AUO 15.6-inch Industrial Panel PC Touch Screen

High-performance 15.6-inch industrial LCD module with 1366*768 resolution and 500 cd/m² brightness

Product Overview

The G156XW01 V2 is a 15.6-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp., featuring an integrated WLED backlight system with LED driver. This industrial-grade panel is designed for demanding applications with robust environmental specifications.

Key Features

15.6-inch WXGA display with 1366*768 resolution
High brightness: 500 cd/m² maximum
WLED backlight with 50,000+ hours lifespan
Wide viewing angles: 85/85/80/80 (CR≥10)
Industrial operating temperature: 0°C to 60°C
LVDS signal interface with 30-pin connector
5.0V input voltage operation
Glare surface with hard coating (3H)

Technical Specifications

Panel Model	G156XW01 V2
Panel Size	15.6 inches
Resolution	1366(RGB)*768 (WXGA)
Display Area	344.232*193.536 mm
Brightness	400 cd/m² (Typ.), 500 cd/m² (Max.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	85/85/80/80 (Left/Right/Up/Down)
Response Time	6/2 ms (Typ.)
Display Colors	16.2 million (70% NTSC)
Signal Interface	LVDS (1 ch, 8-bit), 30 pins
Input Voltage	5.0V (Typical)
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 60°C
Vibration Resistance	1.5G (14.7 m/s²)
Application	Industrial

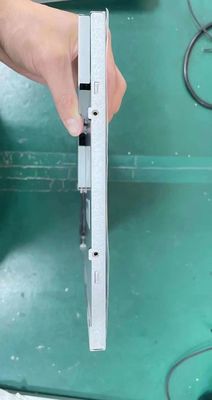

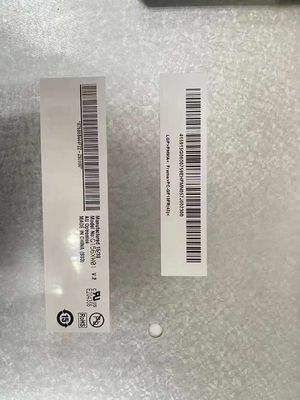

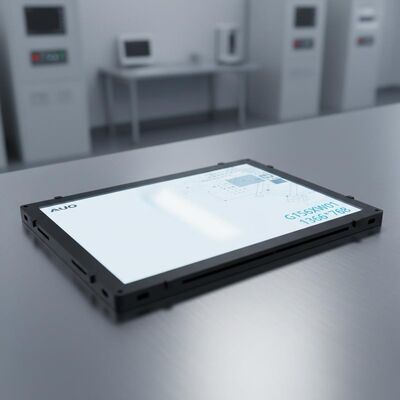

Product Images

Important Note: This model entered mass production in Q1 2015 and is currently discontinued. For integration into your products, we strongly recommend contacting AU Optronics or their authorized agents for the latest production status and specifications.
