Innolux 12.1inch Industrial LCD Display with 400cd/m² Brightness 1280*800pixels Resolution and 30pin LVDS Interface

Name: Innolux 12.1inch Industrial LCD Display with 400cd/m² Brightness 1280*800pixels Resolution and 30pin LVDS Interface
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G121ICE-L02
Price: 43.00 USD
Availability: InStock

Brand Name:	INNOLUX
Model Number:	G121ICE-L02
MOQ:	10PCS
Price:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30K pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROSH,UL,FCC

Material:

Glass

Voltage:

3.3 V

Brightness:

400cd

Resolution:

1280*800pixels

Interface Type:

30pin LVDS

Contrast Ratio:

1000:1

Working Life:

50k Hour

Light Source:

WLED

Packaging Details:

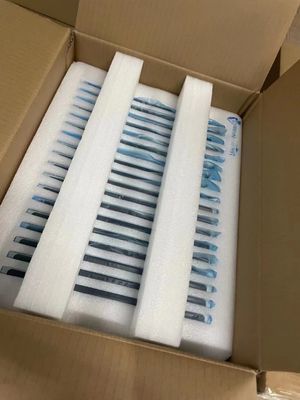

industrial package

Highlight:

Innolux Industrial Panel Lcd Module

400 Cd/M2 Industrial Panel Lcd Module

30pin Industrial Lcd Monitor

Product Description

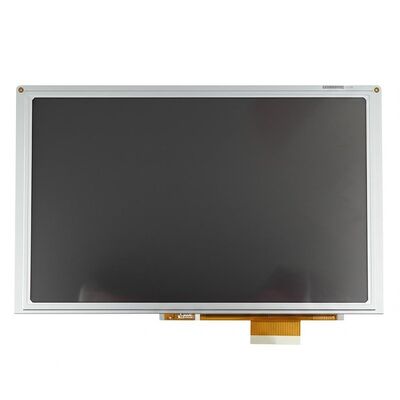

Innolux 12.1-inch Industrial Panel LCD Module G121ICE-L02

The G121ICE-L02 is a 12.1-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring a resolution of 1280*800 pixels (WXGA) and high brightness of 400 cd/m². This industrial-grade LCD module includes an integrated WLED backlight system with LED driver and operates at 3.3V. Designed for demanding environments, it offers an operating temperature range of -20°C to 70°C and robust construction suitable for industrial applications.

Technical Specifications

Panel Brand	Innolux
Panel Model	G121ICE-L02
Panel Size	12.1-inch
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*800, WXGA, 124PPI
Pixel Format	RGB Vertical Stripe
Display Area	261.12(W)*163.2(H) mm
Bezel Opening	264.12(W)*166.2(H) mm
Outline Size	278(W)184(H)10.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	88/88/88/88 (Typical, CR≥10)
Display Mode	AAS, Normally Black, Transmissive
Best View	Symmetry
Response Time	12/8 ms (Typical, Tr/Td)
Display Colors	262K/16.7M, 72% NTSC
Backlight	WLED, 50K hours lifespan, With LED Driver
Refresh Frequency	60Hz
Touch Screen	Without
Panel Weight	470/490g (Typical/Maximum)
Signal Interface	LVDS (1 channel, 6/8-bit), 30-pin Connector
Input Voltage	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-20°C to 70°C

Application Information

Production Status Note: This model entered mass production in Q3 2019 and is currently in production. For the most current production status and specification details, we strongly recommend contacting Innolux or their authorized agents directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
