12.3Inch High Brightness 166ccd/m2 Automotive LCD Display TM123XDKP17-00 with 1920*720pixels Resolution

Name: 12.3Inch High Brightness 166ccd/m2 Automotive LCD Display TM123XDKP17-00 with 1920*720pixels Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM123XDKP17-00
Price: 30.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	TM123XDKP17-00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

166ccd/m2

Resolution:

1920*720pixels

Contrast Ratio:

1000:1

Color:

16.7M

Working Life:

30k Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

Automotive LCD Display 12.3Inch

Tianma Automotive LCD Display

Product Description

Outdoor Tianma Automotive LCD Display 12.3Inch High Brightness TM123XDKP17-00

12.3-Inch Outdoor High Brightness Tianma Automotive Display TM123XDKP17-00 featuring 166 PPI density and 1920*720 pixel resolution. This automotive-grade display is engineered for demanding outdoor and industrial applications.

Product Overview

The TM123XDKP17-00 from Tianma Microelectronics Co., Ltd. is a 12.3-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system. Designed for extreme environments, it operates within -40°C to 85°C temperature ranges and withstands vibration levels up to 3.0G (29.4 m/s²). This bar-style display is ideal for industrial, outdoor high brightness, and automotive display applications.

Key Features

Wide operating temperature range (-40°C to 85°C)
WLED backlight system for consistent illumination
Bar display format optimized for automotive applications
High brightness for outdoor visibility
Robust construction for industrial environments
Multiple refresh rate options including 120Hz and 240Hz modes

Technical Specifications

Panel Brand	TIANMA
Panel Size	12.3"
Resolution	1920(RGB)*720 pixels
Pixel Density	166 PPI
Display Area	292.32(W)*109.62(H) mm
Viewing Angle	88/88/88/88 (CR≥10) Left/Right/Up/Down
Display Colors	16.7M
Contrast Ratio	1000:1 (Typical)
Response Time	30ms (Max.)
Display Mode	SFT, Normally Black, Transmissive
Backlight Type	WLED
Touch Screen	Without
Refresh Rates	60Hz, 120Hz (Panel+Backlight), 240Hz with MEMC
Operating Temperature	-40°C to 85°C
Storage Temperature	-40°C to 95°C
Vibration Level	3.0G (29.4 m/s²)
Weight	Not specified

Application Areas

This display is specifically designed for industrial applications, outdoor high brightness environments, and automotive display systems where reliability and performance under extreme conditions are critical.

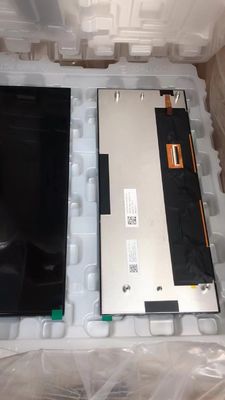

Product Images

Note: Product specifications and availability are subject to change. For the latest production details and technical specifications, please contact Tianma or their authorized distributors.
