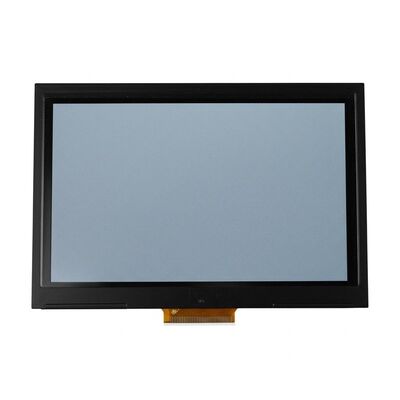

HITACHI 5.7 Inch Industrial LCD Display Panel SP14Q001-X RGB 320 × 240 VGA 700PPI 65CD/M2

HITACHI 5.7Inch Industrial Lcd Display Panel SP14Q001-X 320(RGB)×240 VGA 700PPI 65cd/M2 214PIN

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) SP14Q001-X is a 5.7 inch diagonal STN-LCD display panel product, with an integral CCFL backlight system, without backlight driver, touchscreen 8-wire Resistive Touch. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Einklcd in the following: With Touch . Based on its features, Einklcd recommend that this model be applied to Industrial etc. Now this model is discontinued.  We inputted this model's specification on Jan 6 2013 for the first time, and the latest update on Jun 8 2015. If you want to embed SP14Q001-X LCM in your future product, Einklcd strongly recommend that you should contact with HITACHI or it's distributor to learn lateast production and specification detail. The SP14Q001-X production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand

HITACHI

Model

SP14Q001-X

Diagonal Size

5.7 inch

Type

STN-LCD, LCM

Pixel Format

320×240 [QVGA] 70PPI

Configuration

Rectangle

Active Area

115.185(H)×86.385(V) mm

Outline Dim.

-

Luminance

65 cd/m² (Typ.)

Contrast Ratio

-

View Direction

-

Response Time

-

Viewing Angle

-

Operating Mode

STN, Blue mode (Negative), Transmissive

Support Color

Monochrome

Light Source

CCFL [1 pcs] , W/O Driver

Weight

-

Designed For

Frame Rate

75Hz

Touch Panel

8-wire Resistive Touch

Interface Type

Parallel Data (1ch, 4-bit) , 14 pins FPC

Power Supply

5.0V (Typ.)

Environment

Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
