32 Inch BOE Digital Signage LCD Panel with 1920x1080 Pixels 400cd/m² Brightness and 30k Hours Backlight

Brand Name:	BOE
Model Number:	DV320FHM-NN0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080

Style:

51PIN IPS

Brightness:

400CD/M2

Color:

16.7m

Contrast Ratio:

1200 :1

Working Life:

30k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

LVDS Digital Signage lcd Panel

BOE Digital Signage lcd Panel

32 Inch BOE LCD Panel

Product Description

32 Inch BOE Digital Signage LCD Panel DV320FNM-NN0

High-Definition Digital Display Solution

The DV320FNM-NN0 is a professional 32-inch digital signage LCD panel from BOE Technology Group Co., Ltd., featuring Full HD 1920×1080 resolution with 69 PPI pixel density. This industrial-grade display panel utilizes advanced ADSDS technology with LVDS interface for reliable performance in digital signage applications.

Technical Specifications

Manufacturer	BOE Technology Group Co., Ltd.
Model Name	DV320FNM-NN0
Screen Size	32.0 inch diagonal
Display Technology	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080 (FHD), 69 PPI
Active Area	698.4 × 392.85 mm (H×V)
Outline Dimensions	716.2 × 415.05 mm (H×V)
Brightness	400 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Response Time	8 ms (Typical, G to G)
Color Performance	16.7M colors, 72% NTSC
Backlight System	WLED, 30,000 hours lifespan, with LED Driver
Refresh Rate	60Hz
Signal Interface	LVDS (2 ch, 8-bit), 51-pin connector
Operating Voltage	12.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Weight	4.00 kg (Typical)
Surface Treatment	Antiglare (Haze 1%), Matte finish

Key Features

Full HD 1920×1080 resolution for crisp, clear imagery
Wide 89-degree viewing angles from all directions
High brightness 400 cd/m² for well-lit environments
Long-life WLED backlight with integrated driver
LVDS interface with 51-pin connector for stable signal transmission
Antiglare matte surface reduces reflections and eye strain
Landscape and portrait orientation support

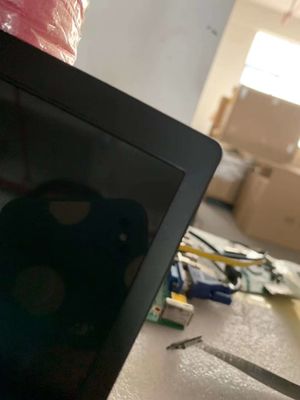

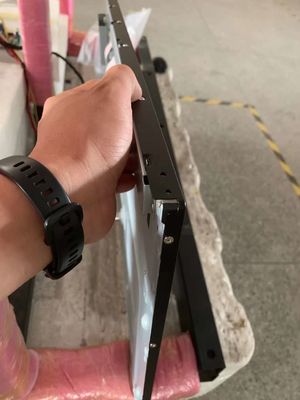

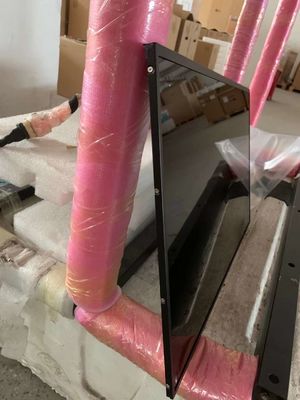

Product Images

Production Note: This model entered mass production in Q2 2017 and is currently in production. For the latest production status and detailed specifications for integration into your products, we recommend contacting BOE or their authorized agents directly.
