PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN

PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN
PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN

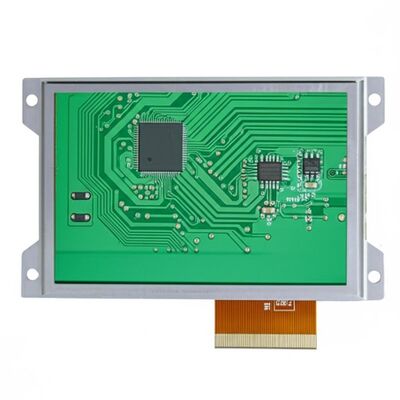

Large Image :  PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN

Product Details:
Place of Origin: China
Brand Name: PVI
Certification: Rohs,CE,FCC
Model Number: PD050VL1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN

Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 640*480pixels Style: 20PIN IPS
Brightness: 450CD/M2 Color: 262k
Contrast Ratio: 400 :1 Working Life: 30K Hours
High Light:

5.7 Inch Industrial Lcd Display Panel

,

PVI Industrial LCD Display Panel

,

PD050VL1 Industrial LCD Display



PVI 5.7Inch Industrial Lcd Display Panel PD050VL1 640(RGB)×480 VGA 160PPI 450cd/M2 20PIN



Prime View International Co., Ltd. (hereafter called PVI) PD050VL1 is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C . It's general features are summarized by Einklcd in the following: Wide Temperature, WLED Backlight, Matte , Support the DENB mode, Sync mode (Hsync+Vsync). Based on its features, einklcd recommend that this model be applied to Industrial, Automotive Display etc. According to the information stored in Einklcd this model mass production on Q2, 2007 and last shippment on Q3, 2016, Now this model is discontinued. We inputted this model's specification on Jan 5 2011 for the first time, and the latest update on Dec 19 2019. If you want to embed PD050VL1 LCM in your future product, Einklcd strongly recommend that you should contact with PVI or it's distributor to learn lateast production and specification detail. The PD050VL1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Panel Brand
PVI
Panel Model
PD050VL1
Panel Size
5.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA, 160PPI
Pixel Format
RGB Vertical Stripe
Display Area
101.76(W)×74.88(H) mm
Bezel Opening
106.7(W)×78.50(H) mm
Outline Size
120.7(W)×92.8(H) ×12.8(D) mm
Surface
Antiglare
Brightness
450 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
Viewing Angle
60/60/40/55 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response Time
15/25 (Typ.)(Tr/Td)
Display Colors
262K
Lamp Type
3S8P WLED , 30K hours , Without Driver
Frequency
-
Touch Screen
Without
Panel Weight
173.6±10g
Application
PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN 0 PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN 1
Signal Interface
LVDS (1 ch, 6-bit) , 20 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C

PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN 2PVI 5.7 Inch Industrial LCD Display Panel PD050VL1 RGB 640×480 VGA 160PPI 450cd/M2 20PIN 3
