| Brand Name: | AUO |
| Model Number: | G101UAN01.0 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
AUO 30PIN 10.1 inch industrial lcd panel WUXGA 224PPI 1920x1200pixels Lcd Display Panel 380cd/M2 G101UAN01.0

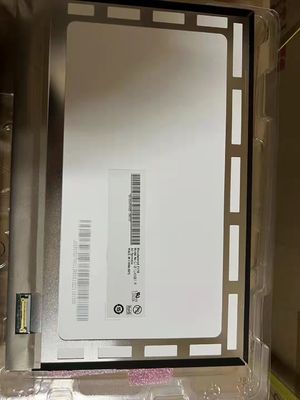

The G101UAN01.0 is a 10.1 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F , eDP1.2. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2018, Now this model is in production. We inputted this model's specification on Aug 1 2017 for the first time, and the latest update on Jan 6 2022. If you want to embed G101UAN01.0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G101UAN01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
| Panel Brand | AUO | Panel Model | G101UAN01.0 |
|---|---|---|---|
| Panel Size | 10.1" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1200, WUXGA, 224PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 216.81(W)×135.5(H) mm | Bezel Opening | - |
| Outline Size | 228.22(W)×147.3(H) ×5.35(D) mm | Surface | Hard coating, Antireflection |
| Brightness | 380 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 52% NTSC | Lamp Type | WLED , 30K hours , With LED Driver |
| Frequency | 60Hz | Touch Screen | Without |
| Panel Weight | 140g (Max.) | Application | |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C | ||
|
|
