BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768 350cd/M2 85PPI

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI
BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI

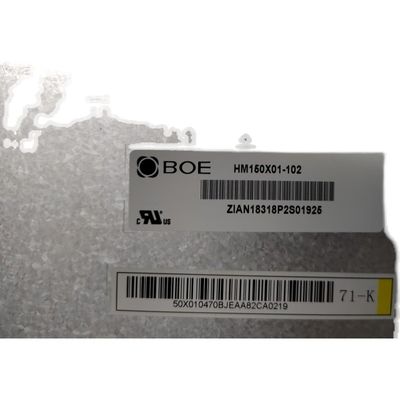

Large Image :  BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768 350cd/M2 85PPI

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: HM150X01-102
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768 350cd/M2 85PPI

Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1024×768PIXELS 85PPI Style: 20PIN IPS
Brightness: 400CD/M2 Color: 16.2m
Contrast Ratio: 700 :1 Voltage Supply: 3.3V
Signal Type: LVDS,20pin Backlight: 50k Hours Life
High Light:

85PPI Medical Imaging Lcd Display

,

350cd/M2 industrial flat panel display

,

HM150X01-102 Industrial Lcd Panel

BOE 15Inch Industrial Lcd Panel Medical imaging lcd display HM150X01-102 1024*768 350cd/M2 85PPI



BOE Technology Group Co., Ltd. (hereafter called BOE) HM150X01-102 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging etc. According to the information stored in einklcd this model mass production on Q1, 2016, Now this model is discontinued. We inputted this model's specification on Jan 27 2016 for the first time, and the latest update on Aug 9 2021. If you want to embed HM150X01-102 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The HM150X01-102 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but we cannot guarantee the spec listed is right.

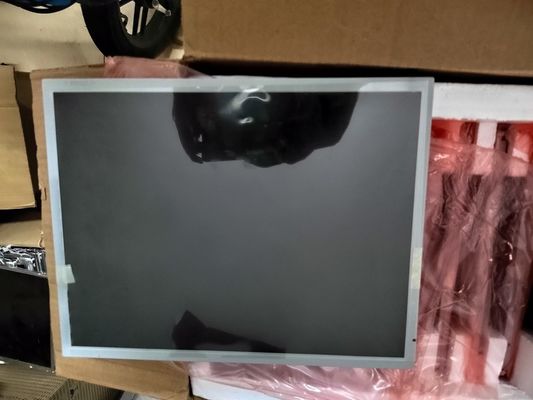

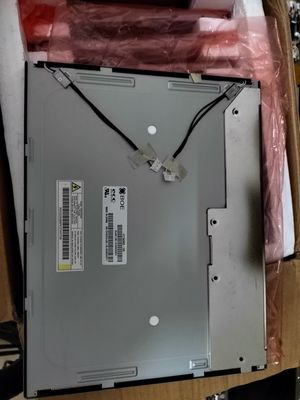

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI 0

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI 1





Manufacturer
BOE
Model Name
HM150X01-102
Screen Size
15.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1024(RGB)×768 (XGA) 85PPI
Arrangement
RGB Vertical Stripe
Active Area(mm)
304.128 × 228.096 (H×V)
Outline(mm)
326.5 × 253.5 × 11.9 (H×V×D)
Bezel Area(mm)
307.4 × 231.3 (H×V)
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
700 : 1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Response
8 (Typ.)(Tr+Td) ms
Good View at
-
Work Mode
TN, Normally White, Transmissive
Color Depth
262K/16.2M 60% NTSC
Backlight
9S3P WLED , 50K hours , With LED Driver
Mass
1.04Kgs (Typ.)
Used for

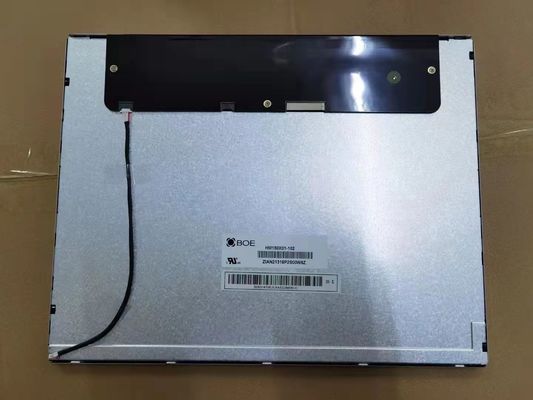

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI 2 BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768  350cd/M2 85PPI 3
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (1 ch, 6/8-bit) , Connector 20 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
