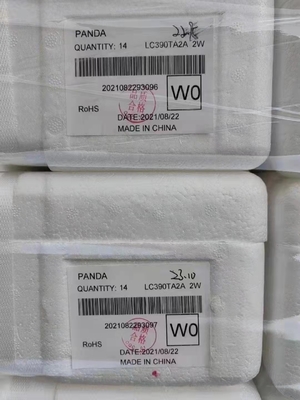

39inch Panda LCD TV Panel LC390TA2A 1366*768pixels 39" LVDS 3pin

The LC390TA2A is a 39 inch diagonal a-Si TFT-LCD display panel product from Nanjing CEC Panda LCD Technology Co., Ltd. (hereafter called PANDA), without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Matte . Based on its features, einklcd recommend that this model be applied to TV Sets etc.Built-in 4 source + 2 gate chips driver IC. According to the information stored in einklcd this model mass production on Q4, 2015, Now this model is in production. We inputted this model's specification on Mar 17 2016 for the first time, and the latest update on Dec 30 2020. If you want to embed LC390TA2A CELL in your future product, einklcd strongly recommend that you should contact with PANDA or it's agent to learn lateast production and specification detail. The LC390TA2A production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Manufacturer

PANDA

Model Name

LC390TA2A

Screen Size

39 inch

Screen Type

CELL, a-Si TFT-LCD

Pixel Number

1366(RGB)×768 (WXGA) 40PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

856.482 × 472.128 (H×V)

Outline(mm)

869.7 × 487.3 × 1.74 (H×V×D)

Bezel Area(mm)

-

Treatment

Antiglare, Hard coating (3H)

Luminance

0 cd/m²

Contrast Ratio

3000 : 1 (Typ.) (TM)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10)

Response

8 (Typ.)(G to G) ms

Good View at

Symmetry

Work Mode

ASV, Normally Black, Transmissive

Glass Thickness

0.70+0.70 mm

Transmissivity

6.0% (Typ.)(with Polarizer)

Color Depth

16.7M 72% NTSC

Backlight

No B/L

Mass

1.68±0.10Kgs

Used for

Refresh Rate

60Hz

Touchscreen

Without

Driver IC list

Built-in COF 4 source + 2 gate chips

Signal Type

LVDS (1 ch, 8-bit) , Connector 30 pins

Voltage Supply

12.0V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
