39 inch Panda LCD TV Panel LC390TA2A with 1366×768 pixels and LVDS 3pin for high-quality display

Name: 39 inch Panda LCD TV Panel LC390TA2A with 1366×768 pixels and LVDS 3pin for high-quality display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LC390TA2A
Price: 30.00 USD
Availability: InStock

Brand Name:	panda
Model Number:	LC390TA2A
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080

Style:

60PIN IPS

Brightness:

700CD/M2

Color:

16.7m

Contrast Ratio:

3000 :1

Working Life:

60k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

LCD TV Panel 1366x768pixels

Tv Display Panel 700CD/M2

Tv Screen Panel LC390TA2A

Product Description

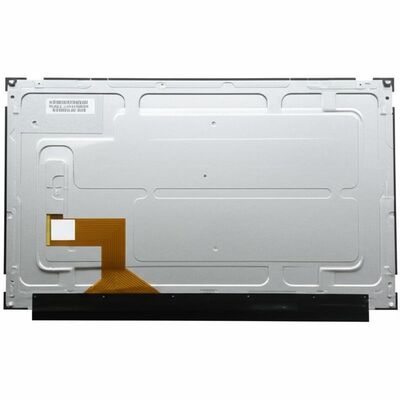

39-inch Panda LCD TV Panel LC390TA2A

The LC390TA2A is a 39-inch diagonal a-Si TFT-LCD display panel from Nanjing CEC Panda LCD Technology Co., Ltd. This panel features 1366*768 WXGA resolution, LVDS interface, and is designed for television applications.

Key Features

39-inch diagonal display with 1366*768 pixel resolution
a-Si TFT-LCD technology with ASV work mode
LVDS signal interface (1 channel, 8-bit)
Built-in COF driver IC with 4 source + 2 gate chips
Antiglare hard coating treatment (3H hardness)
3000:1 contrast ratio and 72% NTSC color gamut
Operating temperature: 0°C to 50°C

Technical Specifications

Manufacturer	PANDA
Model Name	LC390TA2A
Screen Size	39 inch
Screen Type	CELL, a-Si TFT-LCD
Resolution	1366(RGB)*768 (WXGA)
Active Area	856.482 * 472.128 mm (H*V)
Outline Dimensions	869.7 * 487.3 * 1.74 mm (HVD)
Viewing Angle	88/88/88/88 (CR≥10)
Response Time	8 ms (G to G)
Refresh Rate	60Hz
Color Depth	16.7M colors
Voltage Supply	12.0V (Typical)
Mass	1.68±0.10 kg

Application

This panel is specifically designed for television sets and similar display applications. The panel is supplied as a CELL unit without backlight or touch screen.

Important Note: This specification information is provided for reference only. For the latest production status and detailed specifications, please contact PANDA or their authorized agents directly. All specifications are subject to change without notice.
