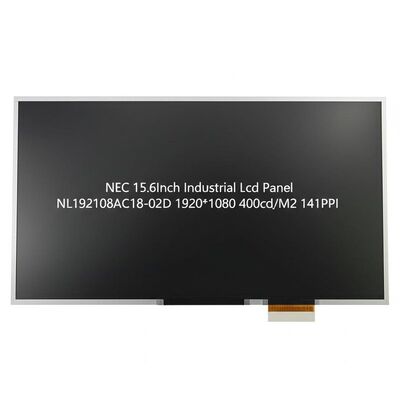

NEC 15.6Inch Industrial Lcd Panel NL192108AC18-02D 1920*1080 400cd/M2 141PPI

NEC 15.6Inch Industrial Lcd Panel NL192108AC18-02D 1920*1080 400cd/M2 141PPI

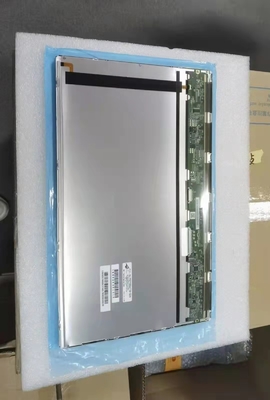

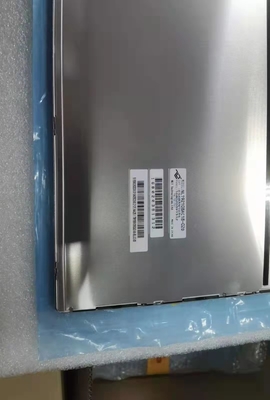

NLT Technologies, Ltd. (hereafter called NLT) NL192108AC18-02D is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2016, Now this model is in production. We inputted this model's specification on Jun 22 2016 for the first time, and the latest update on Aug 26 2021. If you want to embed NL192108AC18-02D LCM in your future product, einklcd strongly recommend that you should contact with NLT or it's distributor to learn lateast production and specification detail. The NL192108AC18-02D production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

• ManufacturerNLT
• Model NameNL192108AC18-02D

• Screen Size15.6 inch
• Screen TypeLCM, a-Si TFT-LCD

• Pixel Number1920(RGB)×1080 (FHD) 141PPI
• ArrangementRGB Vertical Stripe

• Active Area(mm)344.16 × 193.59 (H×V)
• Outline(mm)363.8 × 215.9 (H×V×D)

• Bezel Area(mm)347.55 × 196.75 (H×V)
• TreatmentAntiglare, Hard coating (3H)

• Luminance400 cd/m² (Typ.)
• Contrast Ratio1000 : 1 (Typ.) (TM)

• Viewing Angle88/88/88/88 (Typ.)(CR≥10)
• Response12/13 (Typ.)(Tr/Td) ms

• Good View atSymmetry
• Work ModeUA-SFT, Normally Black, Transmissive

• Color Depth16.7M 72% NTSC
• BacklightWLED , 50K hours , With LED Driver

• Mass610/670g (Typ./Max.)
• Used for

• Refresh Rate60Hz
• TouchscreenWithout

• Signal Type
• LVDS (2 ch, 8-bit) , 30 pins Connector

• Voltage Supply
• 3.3V (Typ.)

• Max. Ratings
• Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
