49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2

49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2
49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2 49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2 49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2

Large Image :  49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV280FBM-NB0
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7m Colors
Model: WLED Style: Wide Screen High Resolution 1366*256pixels
Brightness: 800cd Connector: 30pin
Contrast Ratio: 1200:1 Working Life: 30K Hours
Signal Interface: LVDS Input Voltage: 12V
High Light:

800cd/M2 Stretched Bar Lcd Panel

,

49PPI Stretched Bar Lcd Panel

,

LVDS Stretched Lcd Monitor


BOE 28Inch Stretched bar Lcd panel DV280FBM-NB0 1366*256pixels 49PPI 800cd/M2 30Pin 12V

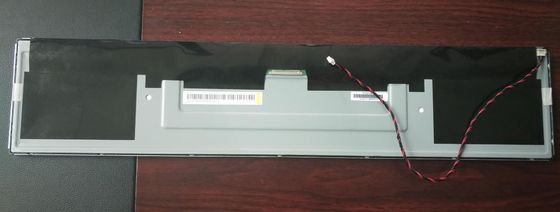

BOE Technology Group Co., Ltd. (hereafter called BOE) DV280FBM-NB0 is a 28.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einklcd in the following: Hight Brightness, WLED Backlight, With LED Driver, Bar Display, Matte , 1/3 cut of 31.5 inch. Based on its features, einklcd recommend that this model be applied to Digital Signage, Stretched Bar LCD etc. According to the information stored in einklcd this model mass production on Q1, 2015, Now this model is discontinued.  We inputted this model's specification on Jun 3 2015 for the first time, and the latest update on Jul 31 2021. If you want to embed DV280FBM-NB0 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The DV280FBM-NB0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2 0

49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2 1

49PPI Stretched Bar Lcd Panel DV280FBM-NB0 BOE 28 Inch LVDS 800cd/M2 2
