58 Inch Diagonal 3840×2160 Resolution 350cd/m² Brightness Innolux LCD Display Screen

Name: 58 Inch Diagonal 3840×2160 Resolution 350cd/m² Brightness Innolux LCD Display Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: V580DJ2-KS5
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	V580DJ2-KS5
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07B Colors

Model:

WLED

Style:

Wide Screen High Resolution 3840*2160PIXELS

Brightness:

350cd

Connector:

51PIN

Contrast Ratio:

4000:1

Working Time:

30k Hours

Input Voltage:

12V

Signal Type:

V-by-one 8 Lane

Packaging Details:

Industrial packing

Highlight:

350cd/M2 Large LCD Display Screen

76PPI Large LCD Display Screen

FCC WLED Lcd Touch Display

Product Description

350cd/M² Large LCD Display Screen 76PPI Innolux 58" WLED V580DJ2-KS5

Product Overview

The Innolux V580DJ2-KS5 is a 58-inch diagonal a-Si TFT-LCD display panel featuring a 3840×2160 resolution with integrated WLED backlight system and LED driver. This high-performance display offers exceptional visual clarity for television applications.

Technical Specifications

Screen Size: 58-inch diagonal

Resolution: 3840 × 2160 (4K UHD)

Brightness: 350 cd/m²

Pixel Density: 76 PPI

Refresh Rate: 120Hz

Color Depth: 10-bit

Backlight: WLED with integrated driver

Surface: Matte finish

3D Capability: Supported (50 cd/m² white luminance)

Interface: Reverse I/F

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Application

This display model is specifically designed for television sets and similar high-performance visual applications requiring 4K resolution and 120Hz refresh rate.

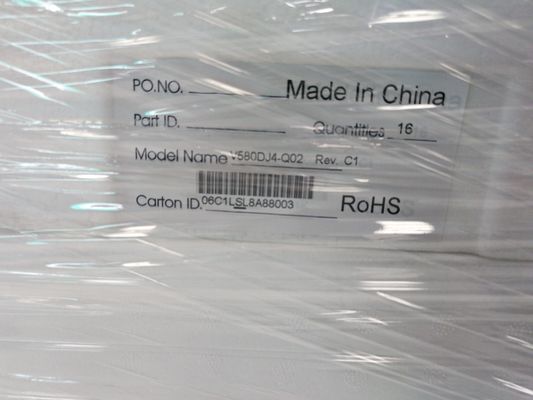

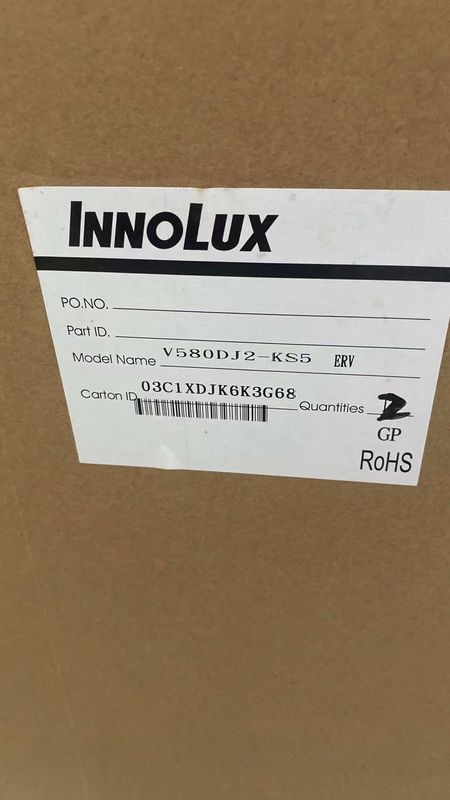

Product Image

Important Note: This model entered mass production in Q4 2014 and is currently discontinued. Specifications were last updated on December 11, 2019. For the latest production status and detailed specifications, please contact Innolux or their authorized distributors directly. Information provided here is for reference only and should not be used as the sole basis for decision-making.
