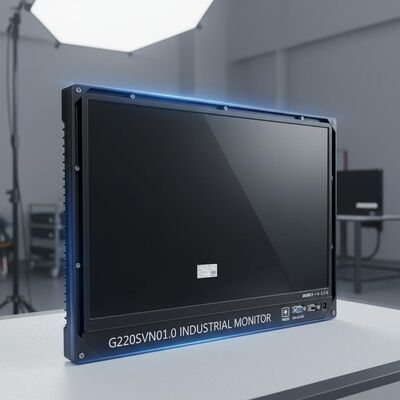

90PPI Industrial Lcd Monitor 22 Inch G220SVN01.0 250cd/m2 5.0V WLED Backlight

We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

90PPI Industrial Lcd Monitor 22 Inch G220SVN01.0 250cd/m2 5.0V WLED Backlight

large.img.alt
small.img.alt small.img.alt

Large Image :  90PPI Industrial Lcd Monitor 22 Inch G220SVN01.0 250cd/m2 5.0V WLED Backlight

Product Details:
Place of Origin: China
Brand Name: AUO
Certification: Rohs,CE,FCC
Model Number: G220SVN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detailed Product Description
Quality: Brand New Original Package: Original Industrial Packing
Resolution: 1680×1050PIXELS 90PPI Style: 30PIN IPS
Brightness: 250CD/M2 Color: 16.7M
Contrast Ratio: 2000 :1 Voltage Supply: 5.0V
High Light:

90PPI Industrial Lcd Monitor

,

250cd/m2 Industrial Lcd Monitor

,

WLED Backlight Panel Mount Lcd Display

22Inch Industrial Lcd Display G220SVN01.0 250 cd/m² 5.0V 30Pin 1680×1050PIXELS 90PPI WLED 30K hours With LED Driver 16.7M color





AU Optronics Corp. (hereafter called AUO) G220SVN01.0 is a 22.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Upside I/F, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Gaming etc. According to the information stored in einklcd this model mass production on Q2, 2013 and last shippment on Q1, 2020, Now this model is discontinued.  We inputted this model's specification on Apr 9 2013 for the first time, and the latest update on Mar 24 2020. If you want to embed G220SVN01.0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G220SVN01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



90PPI Industrial Lcd Monitor 22 Inch G220SVN01.0 250cd/m2 5.0V WLED Backlight 090PPI Industrial Lcd Monitor 22 Inch G220SVN01.0 250cd/m2 5.0V WLED Backlight 1
