CMOS IPS 220CD/M2 Industrial Lcd Display 10.4 Inch 76PPI TX26D05VM1CAA

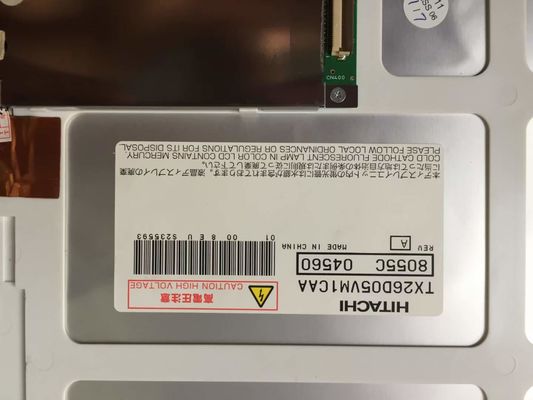

HITACHI 10.4inch industrial lcd display panel 640*480 76PPI TX26D05VM1CAA

TX26D05VM1CAA is a 10.4" diagonal a-Si TFT-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system. Based on its features, einklcd recommend that this model be applied to Industrial etc. Now this model is discontinued.  We inputted this model's specification on Sep 28 2012 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail of TX26D05VM1CAA. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!

• Brand
  HITACHI
• Model
  TX26D05VM1CAA

• Diagonal Size
  10.4 inch
• Type
  a-Si TFT-LCD, LCM

• Pixel Format
  640(RGB)×480 [VGA] 76PPI
• Configuration
  RGB Vertical Stripe

• Active Area
  211.2(H)×158.4(V) mm
• Outline Dim.
  -

• View Direction
  -
• Response Time
  -

• Viewing Angle
  -
• Operating Mode
  TN, Normally White, Transmissive

• Support Color
  262K
• Light Source
  CCFL [2 pcs]

• Weight
• Frame Rate
  60Hz
• Touch Panel
  -
• Interface Type
• CMOS (1 ch, 6-bit) Connector
