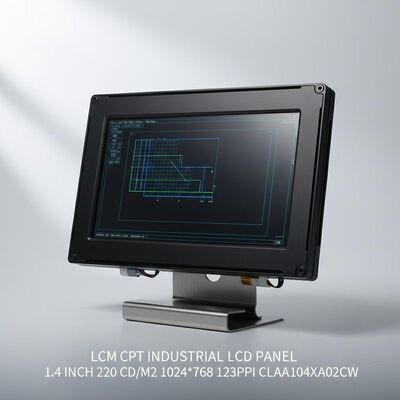

LCM CPT Industrial Lcd Panel 10.4 Inch 220cd/M2 1024*768 123PPI CLAA104XA02CW

CPT 10.4inch industrial lcd display panel 30pin 220cd/m2 1024*768 123PPI CLAA104XA02CW

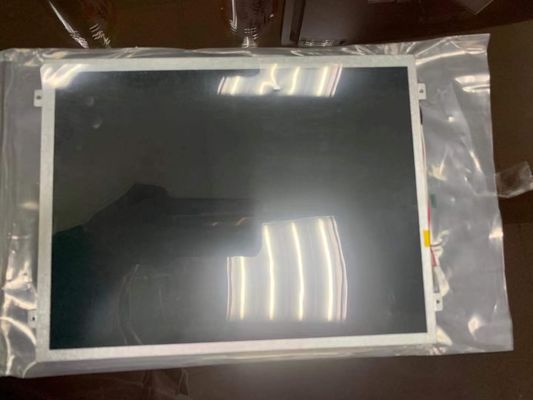

The CLAA104XA02CW is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Chunghwa Picture Tubes, LTD. (hereafter called CPT), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, Reverse I/F, Matte . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2011, Now this model is discontinued. We inputted this model's specification on Apr 6 2013 for the first time, and the latest update on Feb 15 2019. If you want to embed CLAA104XA02CW LCM in your future product, Einklcd strongly recommend that you should contact with CPT or it's agent to learn lateast production and specification detail. The CLAA104XA02CW production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

• Panel Brand
  CPT
• Panel Model

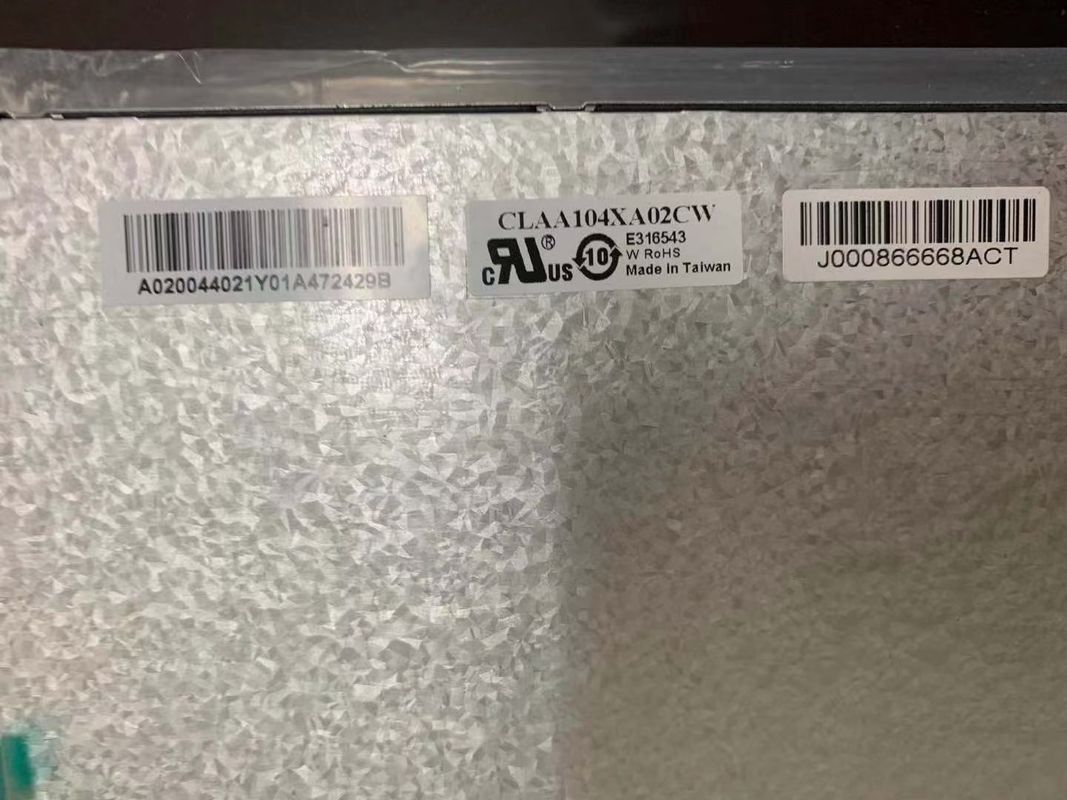

  CLAA104XA02CW

• Panel Size
  10.4"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  1024(RGB)×768, XGA, 123PPI
• Pixel Format
  RGB Vertical Stripe

• Display Area
  211.2(W)×158.4(H) mm
• Bezel Opening
  213.2(W)×160.4(H) mm

• Outline Size
  236(W)×174.3(H) ×7.4(D) mm
• Surface
  Antiglare, Hard coating (3H)

• Brightness
  400 cd/m² (Typ.)
• Contrast Ratio
  500:1 (Typ.) (TM)

• Viewing Angle
  70/70/60/80 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  25 (Typ.)(Tr+Td)

• Display Colors
  262K 47% NTSC
• Lamp Type
  3S13P WLED , 30K hours , Without Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Panel Weight
  385g
• Application


• Signal Interface
• LVDS (1 ch, 6-bit) , 30 pins Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
