5.7 Inch 40 Pin Industrial LCD Display Panel with 220 cd/m² Brightness and 640x480 Resolution

Name: 5.7 Inch 40 Pin Industrial LCD Display Panel with 220 cd/m² Brightness and 640x480 Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: CLAA057VC01CW
Price: 43.00 USD
Availability: InStock

Brand Name:	CPT
Model Number:	CLAA057VC01CW
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

640*480pixels 139ppi

Style:

40PIN IPS

Brightness:

2200CD/M2

Color:

262k

Contrast Ratio:

300 :1

Voltage Supply:

3.3V

Packaging Details:

Industrial packing

Highlight:

5.7 Inch Industrial Lcd Display

139PPI Industrial Lcd Display

NTSC CPT TFT LCD Display

Product Description

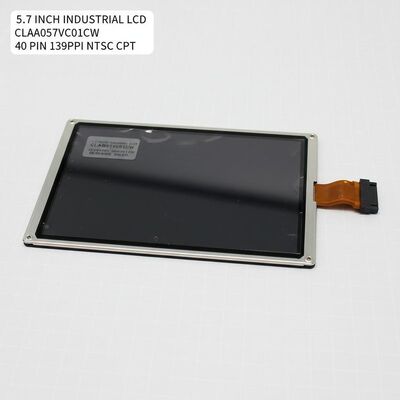

5.7 Inch Industrial LCD Display - CLAA057VC01CW

CPT 5.7-inch industrial LCD display panel with 40-pin connector, 220 cd/m² brightness, 640*480 resolution at 139 PPI. This CLAA057VC01CW model features wide temperature operation, 3G vibration resistance, and integrated WLED backlight with driver.

Product Specifications

Manufacturer	CPT (Chunghwa Picture Tubes, LTD.)
Model Name	CLAA057VC01CW
Screen Size	5.7 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	640*480 (VGA) - 139 PPI
Pixel Arrangement	RGB Vertical Stripe
Active Area	116.16 * 87.12 mm (H*V)
Outline Dimensions	127 * 100 * 6.9 mm (HVD)
Bezel Area	118.96 * 89.92 mm (H*V)
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	220 cd/m² (Typical)
Contrast Ratio	300:1 (Typical)
Viewing Angle	70/70/45/55 (Typical, CR≥10)
Response Time	30 ms (Typical, Tr+Td)
Optimal Viewing	6 o'clock
Display Mode	TN, Normally White, Transmissive
Color Depth	262K, 50% NTSC
Backlight System	WLED, 30K hours lifespan, With LED Driver
Mass	110g (Typical)
Touchscreen	Without
Signal Type	TTL (1 channel, 6-bit), 40-pin Connector
Voltage Supply	3.3V (Typical)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 90°C
Vibration Level	2.9G (28.4 m/s²)

Product Overview

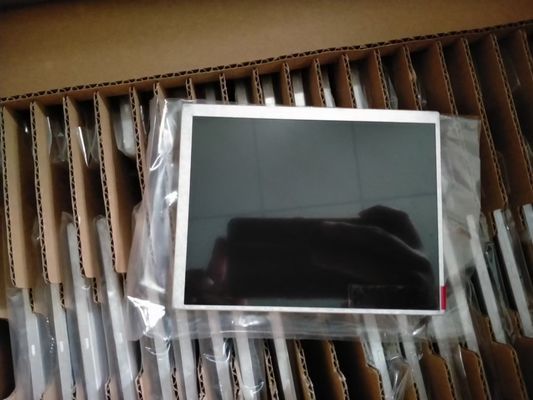

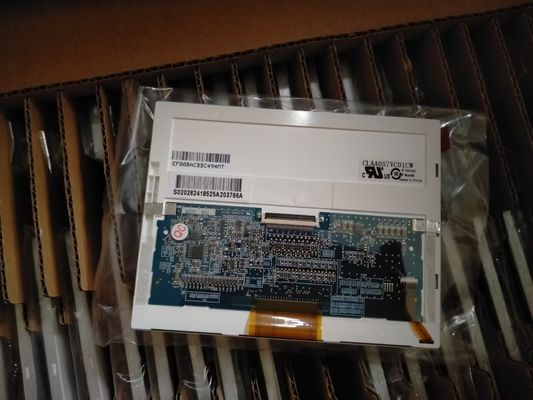

The CLAA057VC01CW is a 5.7-inch diagonal a-Si TFT-LCD display panel from Chunghwa Picture Tubes, LTD. (CPT) featuring an integrated WLED backlight system with LED driver. This industrial-grade display offers wide temperature operation, 3G vibration resistance, and supports display reversal functions (U/D, L/R).

Application Recommendations

This model is recommended for industrial applications requiring reliable performance in challenging environments with wide temperature ranges and vibration resistance.

Important Note: This model entered mass production in Q2 2010 and is now discontinued. The specifications were last updated on August 22, 2017. For current production status and latest specifications, please contact CPT or their authorized agents directly. Information provided here is for reference only and should not be used as the sole basis for decision-making.
