76PPI COMS 10.4 Inch Industrial Lcd Display 450cd/M2 NEC NL6448BC33-59

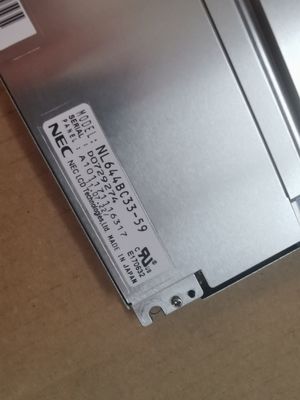

Large Image : 76PPI COMS 10.4 Inch Industrial Lcd Display 450cd/M2 NEC NL6448BC33-59

Product Details:

Place of Origin:	China
Brand Name:	NEC
Certification:	Rohs,CE,FCC
Model Number:	NL6448BC33-59

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Delivery Time:	4-5 working day
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Contact Now

Detailed Product Description

Quality:	Brand New Original	Package:	Original Industrial Packing
Resolution:	640*480pixels	Style:	31PIN IPS
Brightness:	450CD/M2	Color:	262k
Contrast Ratio:	600 :1	Working Life:	50K Hours
High Light:	10.4 Inch Industrial Lcd Display , COMS Industrial Lcd Display , 450cd/M2 Industrial Touch Monitor

NEC NL6448BC33-59 10.4inch Industrial Lcd Display 640(RGB)×480, VGA, 76PPI 3.3V 31P COMS 450 cd/m² (Typ.)

Panel Brand	NEC	Panel Model	NL6448BC33-59 1 Compatible
Panel Size	10.4"	Panel Type	a-Si TFT-LCD , LCM
Resolution	640(RGB)×480, VGA, 76PPI	Pixel Format	RGB Vertical Stripe
Display Area	211.2(W)×158.4(H) mm	Bezel Opening	215.4(W)×161.8(H) mm
Outline Size	243(W)×185.1(H) ×11(D) mm	Surface	Clear, Hard coating (3H)
Brightness	450 cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	70/70/45/55 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	8/25 (Typ.)(Tr/Td)
Display Colors	262K 43% NTSC	Lamp Type	2 pcs CCFL , Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	475/500g (Typ./Max.)	Application
Signal Interface	CMOS (1 ch, 6-bit) , 31 pins Connector
Input Voltage	3.3/5.0V (Typ.)
Environment	Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

The NL6448BC33-59 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Einklcd in the following: Lamp Repaceable, 180° Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2003 and last shippment on Q3, 2015, Now this model is discontinued. We inputted this model's specification on Dec 25 2012 for the first time, and the latest update on Aug 6 2019. If you want to embed NL6448BC33-59 LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail. The NL6448BC33-59 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
