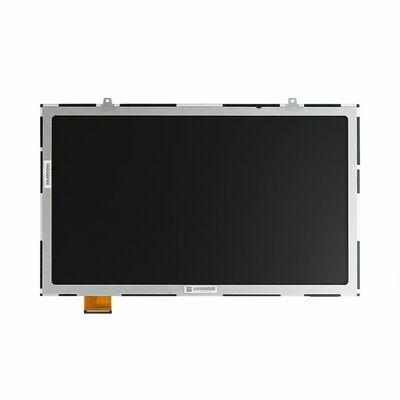

27in 163PPI 3480x2160 Industrial Lcd Panel LM270WR3-SSA1 350cd/M2

LG 27Inch Industrial LCD Display 3480*2160 Pixels 163PPI 30 Pin LM270WR3-SSA1 350 cd/m² 1.07B Color

LM270WR3-SSA1 (Alias: LM270WR3 (SS)(A1)) is a 27.0" diagonal a-Si TFT-LCD display panel product from LG Display Co., Ltd. (hereafter called LG Display), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: sRGB, 3-side boderless, WLED Backlight, Reverse I/F, 10 bit, Matte , Energy Star 7.0 Compliance; sRGB; 3-side borderless (L/R BM:5.5mm). Based on its features, einklcd recommend that this model be applied to Desktop Monitor, Industrial, Gaming etc. According to the information stored in einklcd this model mass production on Q4, 2015, Now this model is in production.  We inputted this model's specification on May 27 2016 for the first time, and the latest update on Apr 12 2021. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with LG Display or it's agent to learn lateast production and specification detail of LM270WR3-SSA1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Manufacturer

LG Display

Model Name

LM270WR3-SSA1

Screen Size

27.0 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

3840(RGB)×2160 (UHD) 163PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

596.74 × 335.66 (H×V)

Outline(mm)

608.8 × 355.3 × 13.3 (H×V×D)

Bezel Area(mm)

-

Treatment

Antiglare, Hard coating (3H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

1300 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Response

14 (Typ.)(G to G) ms

Good View at

Symmetry

Work Mode

IPS, Normally Black, Transmissive

Color Depth

1.07B 100% sRGB

Backlight

4 strings WLED , 30K hours , No Driver

Mass

3.20/3.36Kgs (Typ./Max.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

eDP (4 Lanes) , Connector 30 pins

Voltage Supply

10.0V (Typ.)

Max. Ratings

Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
